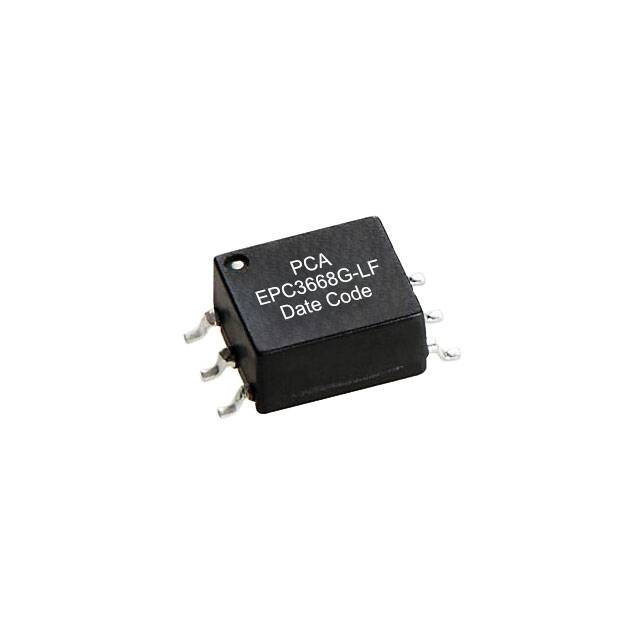

EPC3668G-LF PCA Electronics, Inc.
Favorite
Compare
Manufacturer:
PCA Electronics, Inc.
MFR Product Number:
EPC3668G-LF
Product Number:
EPC3668G-LF
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR P-P DC/DC CONV 1MH SMD
Datasheet:
Descnt:
Push-Pull Converters For For DC/DC Converters SMPS Transformer 2500Vrms Isolation 300 ~ 620kHz Surface Mount
In Stock
1605
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
PCA Electronics, Inc.
Series
EPC-SMT6
Packaging
Tape & Reel (TR)
Part Status
Active
Type
For DC/DC Converters
Applications
Push-Pull Converters
Intended Chipset
SN6501, SN6505B
Chipset Manufacturer
Texas Instruments
Voltage - Primary
5V
Voltage - Auxiliary
5V
Voltage - Isolation
2500Vrms
Inductance Frequency
1mH 10KHz
Frequency
300 ~ 620kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Height - Seated (Max)
0.165" (4.19mm)
Footprint
0.276" L x 0.433" W (7.01mm x 11.00mm)
Style
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
3110-EPC3668G-LFTR
Standard Package
1
