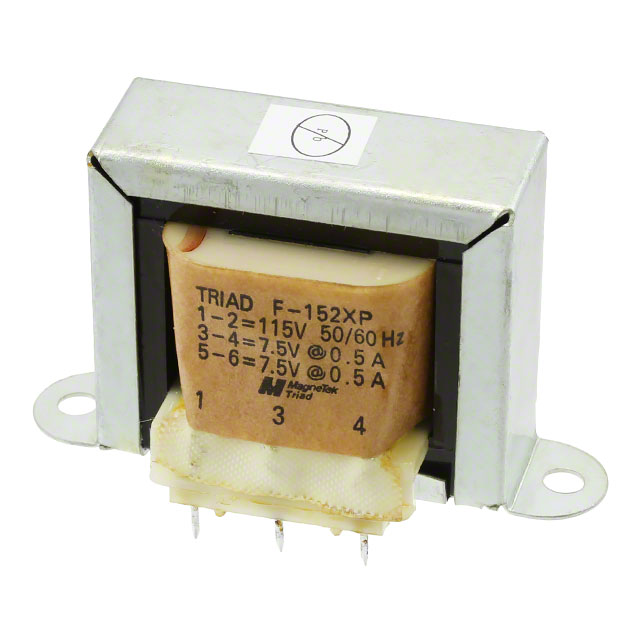

F-152XP Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
F-152XP
Product Number:
F-152XP
MFR Standard Lead Time:
23 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 7.5VA CHAS MT
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
Single Primary
Packaging
Box
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V
Voltage - Secondary (Full Load)
Parallel 7.5V, Series 15V
Current - Output (Max)
Parallel 1A, Series 500mA
Primary Winding(s)
Single
Secondary Winding(s)
Dual
Center Tap
No
Power - Max
7.5VA
Mounting Type
Chassis Mount
Termination Style
PC Pin
Size / Dimension
71.42mm L x 37.29mm W
Height - Seated (Max)
41.28mm
Voltage - Isolation
1500Vrms
Weight
0.657 lb (298.01 g)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
237-1918
Standard Package
1
