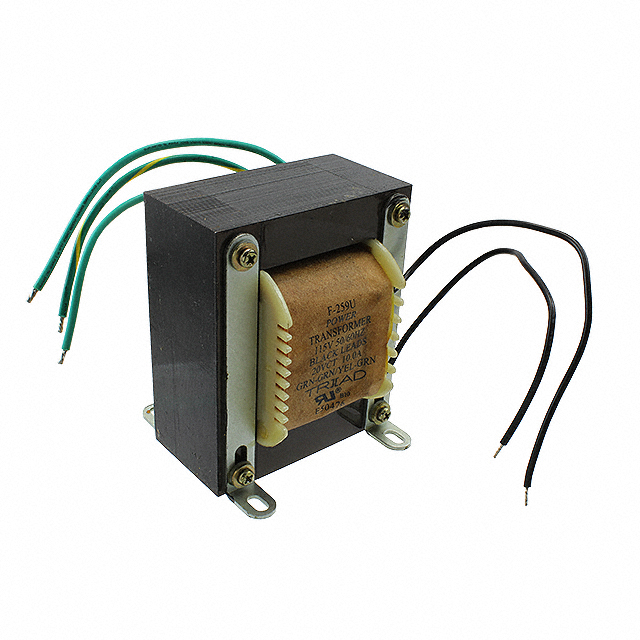

F-259U Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
F-259U
Product Number:
F-259U
MFR Standard Lead Time:
23 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 200VA CHAS MT
Datasheet:
Descnt:
In Stock
3
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
Single Secondary
Packaging
Box
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V
Voltage - Secondary (Full Load)
20V
Current - Output (Max)
10A
Primary Winding(s)
Single
Secondary Winding(s)
Single
Center Tap
Yes
Power - Max
200VA
Mounting Type
Chassis Mount
Termination Style
Wire Leads
Size / Dimension
87.30mm L x 88.90mm W
Height - Seated (Max)
104.77mm
Voltage - Isolation
1500Vrms
Weight
7.4 lbs (3.4 kg)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
237-1948
Standard Package
1
