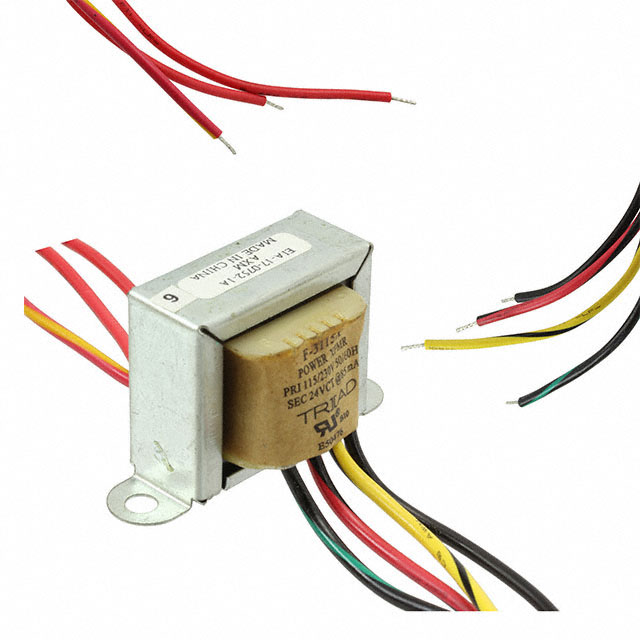

F-3115X Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
F-3115X
Product Number:
F-3115X
MFR Standard Lead Time:
23 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 2VA CHAS MT
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
Single Secondary
Packaging
Box
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
24V
Current - Output (Max)
85mA
Primary Winding(s)
Dual
Secondary Winding(s)
Single
Center Tap
Yes
Power - Max
2VA
Mounting Type
Chassis Mount
Termination Style
Wire Leads
Size / Dimension
52.37mm L x 34.93mm W
Height - Seated (Max)
30.15mm
Voltage - Isolation
1500Vrms
Weight
0.3 lb (136.08 g)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
237-1962
Standard Package
1
