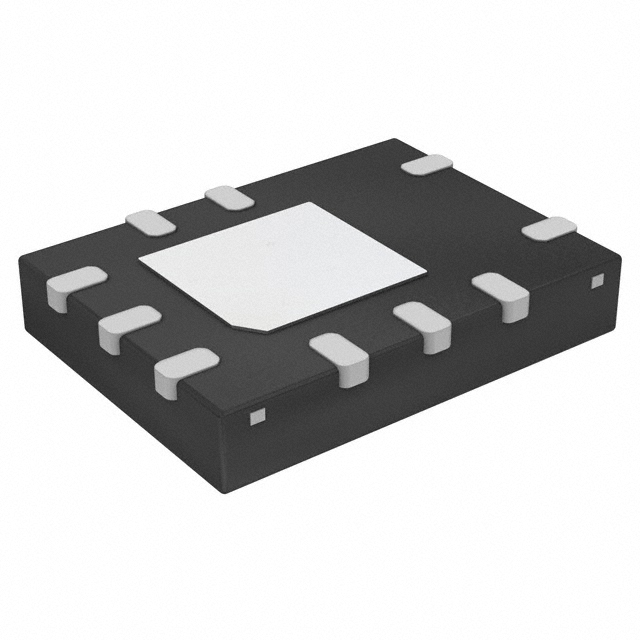

FAN501MPX Fairchild Semiconductor
Favorite
Compare
Manufacturer:
Fairchild Semiconductor
MFR Product Number:
FAN501MPX
Product Number:
FAN501MPX
MFR Standard Lead Time:
Package/Case:
10-WQFN Exposed Pad
Detailed Description:
IC OFFLINE SWITCH FLYBACK 10MLP
Datasheet:
Descnt:
Converter Offline Flyback Topology 85kHz ~ 140kHz 10-MLP (4x3)
In Stock
33000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Fairchild Semiconductor
Series
WSaver®
Packaging
Bulk
Part Status
Active
Output Isolation
Isolated
Internal Switch(s)
No
Voltage - Breakdown
-
Topology
Flyback
Voltage - Start Up
17.5 V
Voltage - Supply (Vcc/Vdd)
5.8V ~ 30V
Duty Cycle
68.5%
Frequency - Switching
85kHz ~ 140kHz
Fault Protection
Current Limiting, Over Temperature, Over Voltage
Control Features
-
Operating Temperature
-40°C ~ 125°C (TA)
Package / Case
10-WQFN Exposed Pad
Supplier Device Package
10-MLP (4x3)
Mounting Type
Surface Mount
Base Product Number
FAN501
-
Documents & Media
Environmental & Export Classifications
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
792
