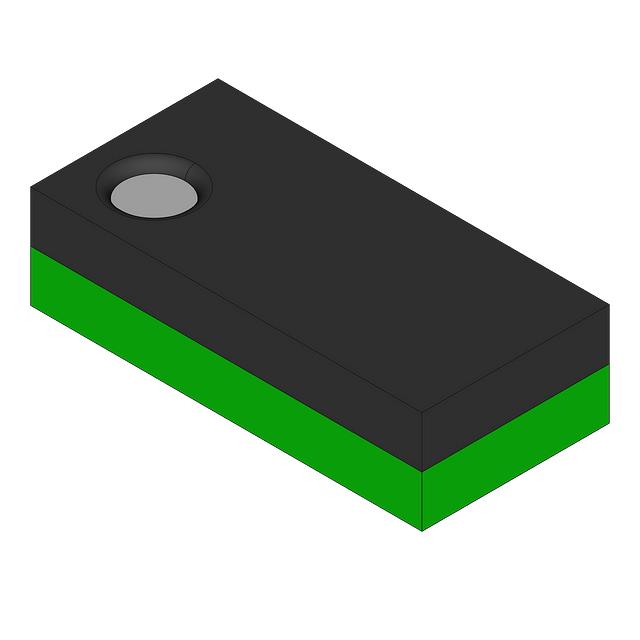

FAN5340MPX Fairchild Semiconductor
Favorite
Compare
Manufacturer:
Fairchild Semiconductor
MFR Product Number:
FAN5340MPX
Product Number:
FAN5340MPX
MFR Standard Lead Time:
Package/Case:
8-WDFN Exposed Pad
Detailed Description:
IC LED DRVR RGLTR PWM 40MA 8MLP
Datasheet:
Descnt:
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 40mA 8-MLP (3x3)
In Stock
2653
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Fairchild Semiconductor
Series
-
Packaging
Bulk
Part Status
Obsolete
Type
DC DC Regulator
Topology
Step-Up (Boost)
Internal Switch(s)
Yes
Number of Outputs
1
Voltage - Supply (Min)
2.7V
Voltage - Supply (Max)
4.8V
Voltage - Output
6.2V ~ 16V
Current - Output / Channel
40mA
Frequency
1.2MHz
Dimming
PWM
Applications
Backlight
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
8-WDFN Exposed Pad
Supplier Device Package
8-MLP (3x3)
Base Product Number
FAN5340
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
533
