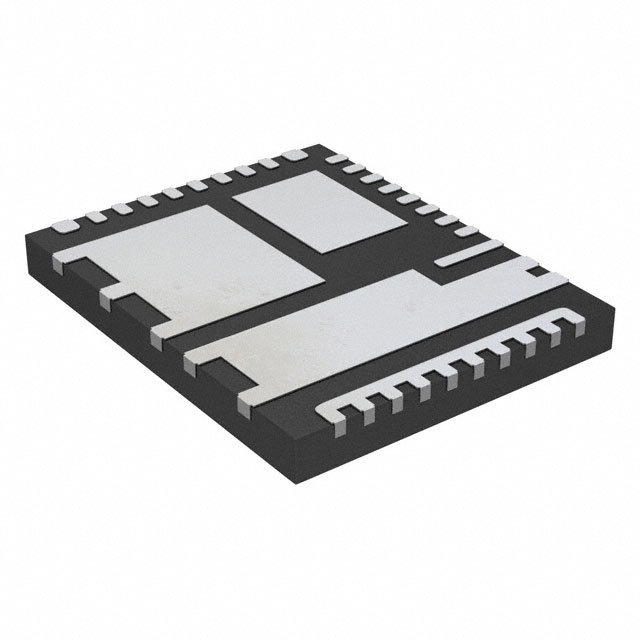

FDMF4061 onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
FDMF4061
Product Number:
FDMF4061
MFR Standard Lead Time:
Package/Case:
36-PowerWFQFN
Detailed Description:
IC HALF BRIDGE DRIVER 25A 36QFN
Datasheet:
Descnt:
Half Bridge Driver DC Motors, DC-DC Converters Power MOSFET 36-PQFN (7.5x6)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Output Configuration
Half Bridge
Applications
DC Motors, DC-DC Converters
Interface
PWM
Load Type
Inductive, Capacitive
Technology
Power MOSFET
Rds On (Typ)
2.4mOhm LS + HS
Current - Output / Channel
25A
Current - Peak Output
-
Voltage - Supply
10V ~ 20V
Voltage - Load
3V ~ 50V
Operating Temperature
-40°C ~ 125°C (TJ)
Features
Bootstrap Circuit
Fault Protection
UVLO
Mounting Type
Surface Mount
Package / Case
36-PowerWFQFN
Supplier Device Package
36-PQFN (7.5x6)
Base Product Number
FDMF4061
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
