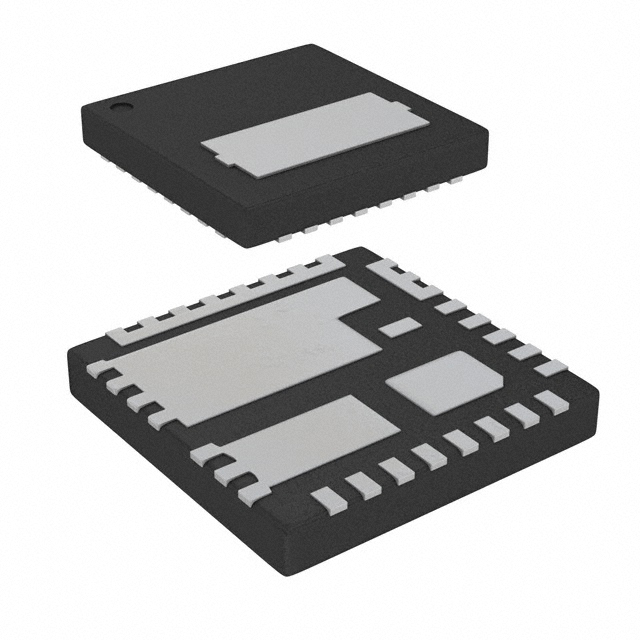

FDMF5826DC onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
FDMF5826DC
Product Number:
FDMF5826DC
MFR Standard Lead Time:
Package/Case:
31-PowerWFQFN
Detailed Description:
IC HALF BRIDGE DRIVER 60A 31PQFN
Datasheet:
Descnt:
Half Bridge Driver Synchronous Buck Converters UMOS 31-PQFN (5x5)
In Stock
6
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
PowerTrench®, SyncFET™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Half Bridge
Applications
Synchronous Buck Converters
Interface
PWM
Load Type
Inductive
Technology
UMOS
Rds On (Typ)
470mOhm LS, 680mOhm HS
Current - Output / Channel
60A
Current - Peak Output
-
Voltage - Supply
4.5V ~ 5.5V
Voltage - Load
4.5V ~ 16V
Operating Temperature
-40°C ~ 150°C (TJ)
Features
Bootstrap Circuit, Latch Function, Status Flag
Fault Protection
Over Temperature, UVLO
Mounting Type
Surface Mount
Package / Case
31-PowerWFQFN
Supplier Device Package
31-PQFN (5x5)
Base Product Number
FDMF5826
-
Documents & Media
Featured Product
Cloud Systems Computing
Power Stage Products
Smart Power Stage (SPS) Module Family
PCN Design/Specification
Update Driver IC 20/Oct/2021
Logo 17/Aug/2017
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
