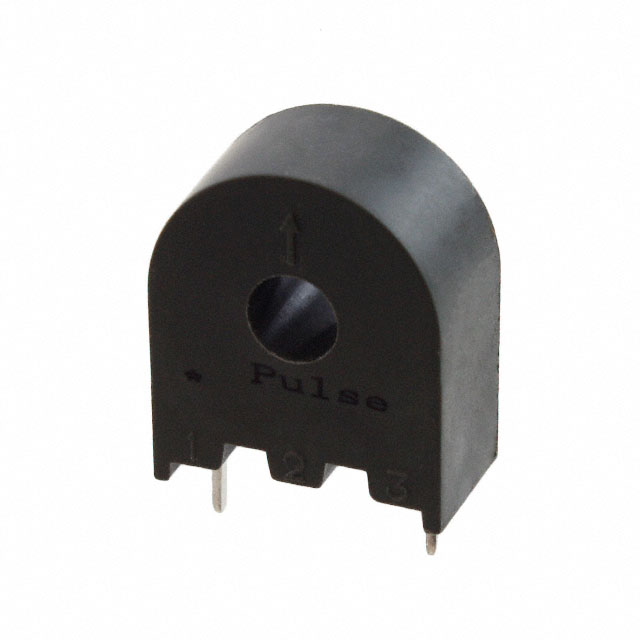

FIS101NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
FIS101NL
Product Number:
FIS101NL
MFR Standard Lead Time:
16 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:50 15A T/H
Datasheet:
Descnt:
15 A 1:50 Current Sense Transformer 200kHz Max 650mOhm Secondary Max 5 mH Through Hole
In Stock
36
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
FIS
Packaging
Tube
Part Status
Active
Frequency Range
200kHz Max
Type
Non-Invasive (Solid Core)
Current Rating (Amps)
15 A
Inductance
5 mH
ET (Volt-Time)
175VµS
Turns Ratio - Primary:Secondary
1:50
Current Ratio
-
DC Resistance (DCR)
650mOhm Secondary Max
Ratings
-
Mounting Type
Through Hole
Size / Dimension
0.677" L x 0.375" W (17.20mm x 9.53mm)
Height - Seated (Max)
0.803" (20.40mm)
Termination Style
PC Pin
Weight
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.50.4000
-
Additional Resources
Other Names
Standard Package
55
