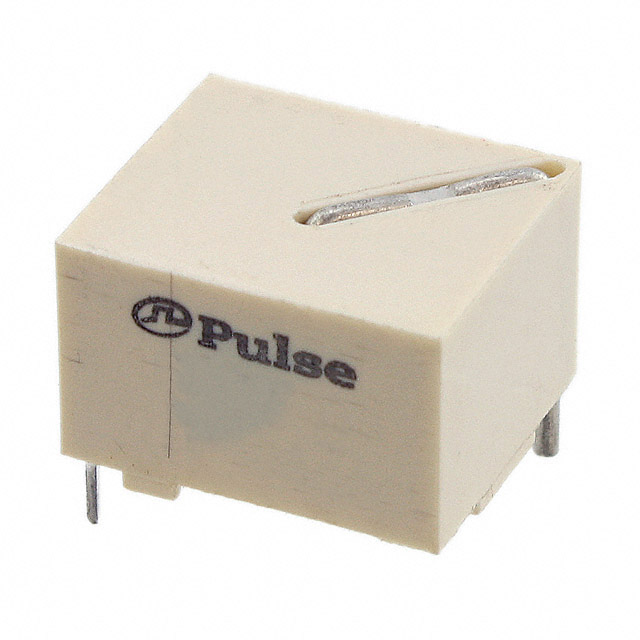

FIS155NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
FIS155NL
Product Number:
FIS155NL
MFR Standard Lead Time:
17 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:500 25A T/H
Datasheet:
Descnt:
1:500 Current Sense Transformer 500kHz Max 16Ohm Max 470 mH Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
FIS 1X5
Packaging
Tube
Part Status
Active
Frequency Range
500kHz Max
Type
Invasive
Inductance
470 mH
ET (Volt-Time)
1750VµS
Turns Ratio - Primary:Secondary
1:500
Current Ratio
-
DC Resistance (DCR)
16Ohm Max
Ratings
-
Mounting Type
Through Hole
Size / Dimension
0.693" L x 0.591" W (17.60mm x 15.00mm)
Height - Seated (Max)
0.492" (12.50mm)
Termination Style
PC Pin
Weight
0.017 lb (7.71 g)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
30
