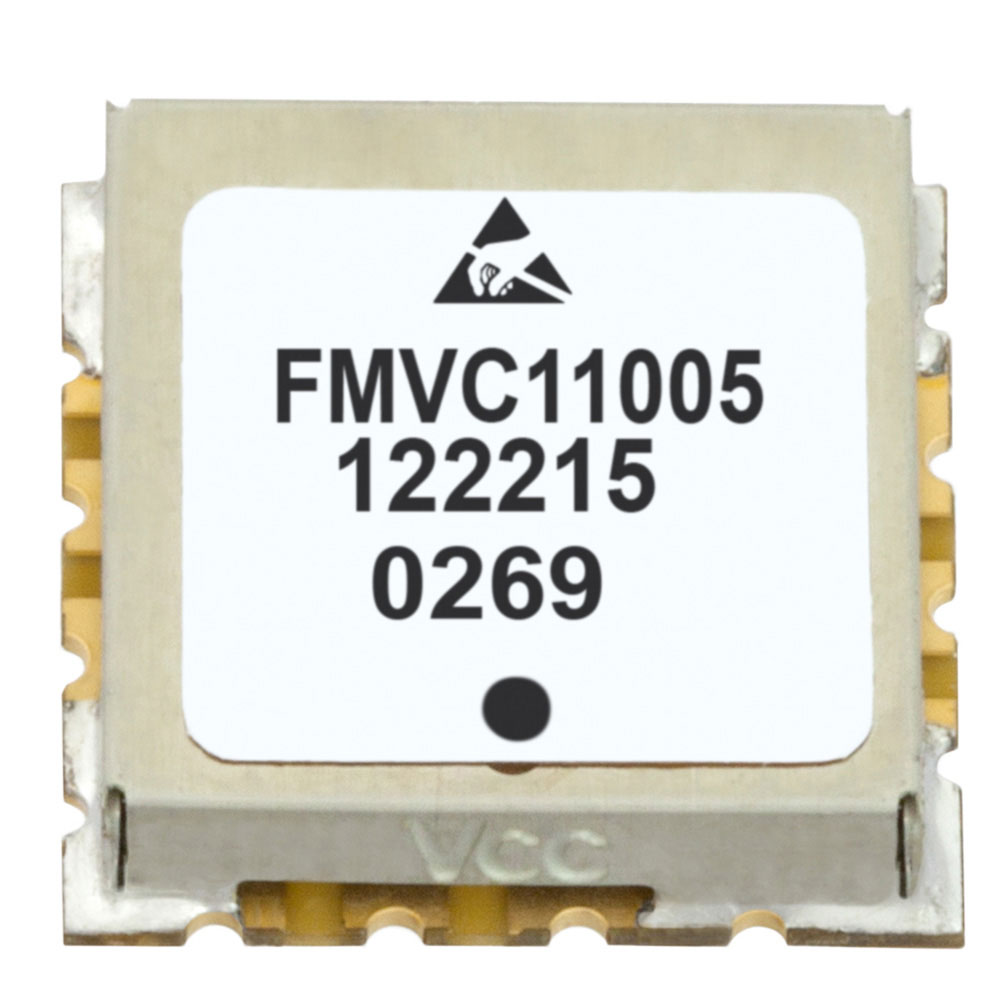

FMVC11005 Fairview Microwave
Favorite
Compare
Manufacturer:
Fairview Microwave
MFR Product Number:
FMVC11005
Product Number:
FMVC11005
MFR Standard Lead Time:
9 Weeks
Package/Case:
16-SMD, No Lead
Detailed Description:
VOLT CONTROL OSC 40MHZ-100MHZ
Datasheet:
Descnt:
70MHz Center Frequency 0 V ~ 20 V Voltage Controlled Oscillator 11.5 -1.5, +1 dBm -14 2nd Harmonic Typ (dBc)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Fairview Microwave
Series
-
Packaging
Bag
Part Status
Active
Frequency Range
40 ~ 100MHz
Frequency - Center
70MHz
Voltage - Supply
15V
Tuning Voltage (VDC)
0 V ~ 20 V
2nd Harmonic, Typ (dBc)
-14
Icc Max
20mA
Pushing (MHz/V)
5
Power (dBm)
11.5 -1.5, +1
Phase Noise Typ (dBc/Hz)
-118
Operating Temperature
-40°C ~ 85°C
Package / Case
16-SMD, No Lead
Size / Dimension
0.500" L x 0.500" W (12.70mm x 12.70mm)
Height
0.126" (3.20mm)
-
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
-
Additional Resources
Other Names
5328-FMVC11005
Standard Package
1
