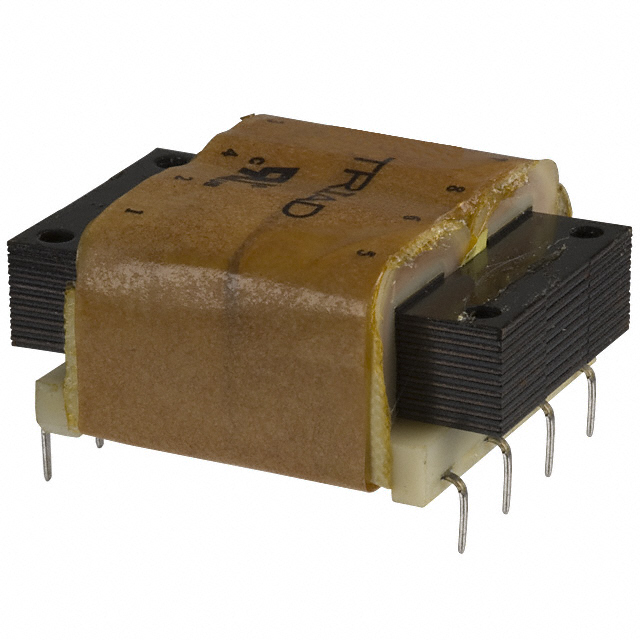

FP16-375 Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
FP16-375
Product Number:
FP16-375
MFR Standard Lead Time:
23 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 6VA TH
Datasheet:
Descnt:
In Stock
710
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Product Attributes
Manufacturer
Triad Magnetics
Series
Flat Pack™
Packaging
Box
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
Parallel 8V, Series 16V
Current - Output (Max)
Parallel 750mA, Series 375mA
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Center Tap
No
Power - Max
6VA
Mounting Type
Through Hole
Termination Style
PC Pin
Size / Dimension
47.63mm L x 39.67mm W
Height - Seated (Max)
22.22mm
Voltage - Isolation
2000Vrms
Weight
0.438 lb (198.67 g)
Documents & Media
Product Drawings
FP Series Drawing
FP Series Schematic
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
