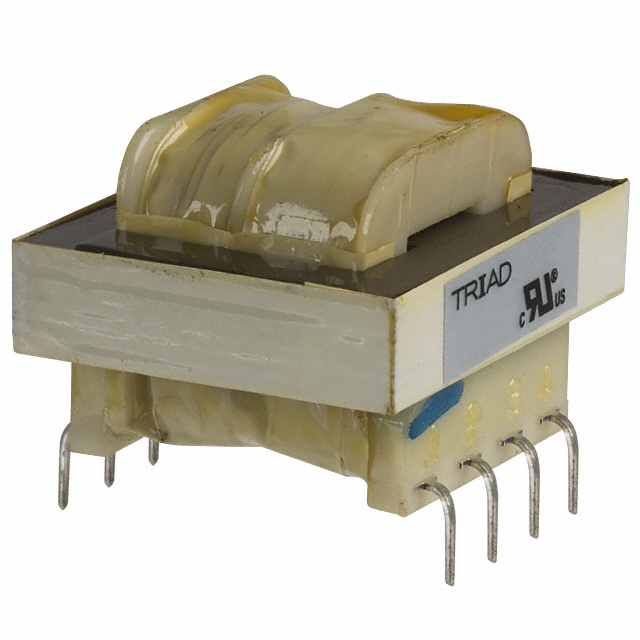

FS36-030 Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
FS36-030
Product Number:
FS36-030
MFR Standard Lead Time:
23 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 1.1VA TH
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
Split Pack™
Packaging
Box
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
Parallel 18V, Series 36V
Current - Output (Max)
Parallel 60mA, Series 30mA
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Center Tap
No
Power - Max
1.1VA
Mounting Type
Through Hole
Termination Style
PC Pin
Size / Dimension
34.93mm L x 28.56mm W
Height - Seated (Max)
23.80mm
Voltage - Isolation
2500Vrms
Weight
0.17 lb (77.11 g)
Documents & Media
Product Drawings
FS Series Schematic
FS Series
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
