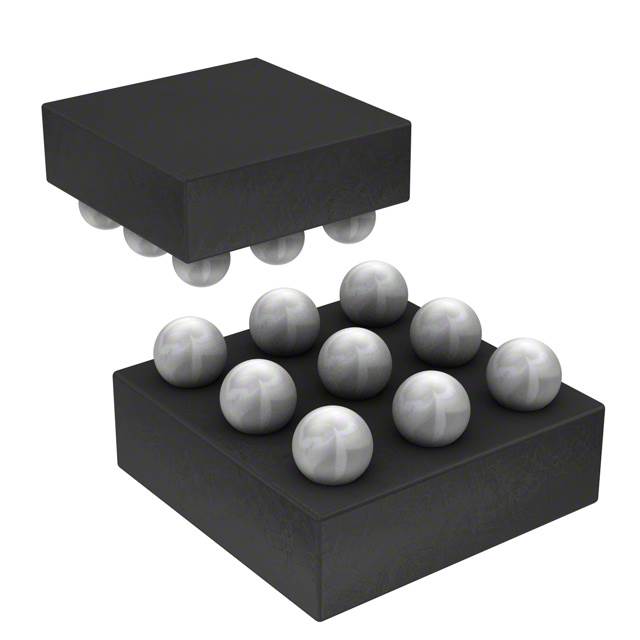

FSUSB242UCX onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
FSUSB242UCX
Product Number:
FSUSB242UCX
MFR Standard Lead Time:
Package/Case:
9-UFBGA, WLCSP
Detailed Description:
TYPE C USB PROTECT SWITCH
Datasheet:
Descnt:
USB Switch IC 2 Channel 9-WLCSP (1.2x1.2)
In Stock
2906
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Last Time Buy
Applications
USB
Multiplexer/Demultiplexer Circuit
2:1
Switch Circuit
DPDT
Number of Channels
2
On-State Resistance (Max)
5Ohm (Typ)
Voltage - Supply, Single (V+)
2.7V ~ 5.5V
Voltage - Supply, Dual (V±)
-
-3db Bandwidth
1GHz
Features
Break-Before-Make, USB 2.0
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
9-UFBGA, WLCSP
Supplier Device Package
9-WLCSP (1.2x1.2)
Base Product Number
FSUSB242
Documents & Media
Video File
11 Myths About USB Type-C Part 1
11 Myths About USB Type-C Part 2
Environmental Information
onsemi RoHS
onsemi REACH
Material Declaration FSUSB242UCX
PCN Obsolescence/ EOL
EOL 04/Oct/2024
EOL 08/Apr/2024
PCN Design/Specification
FANx/FFGx/FPFx/FSAx/FSUBx/FTLx/FUSBx 06/May/2022
FSUSB242UCX Datasheet Corr 30/May/2019
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
