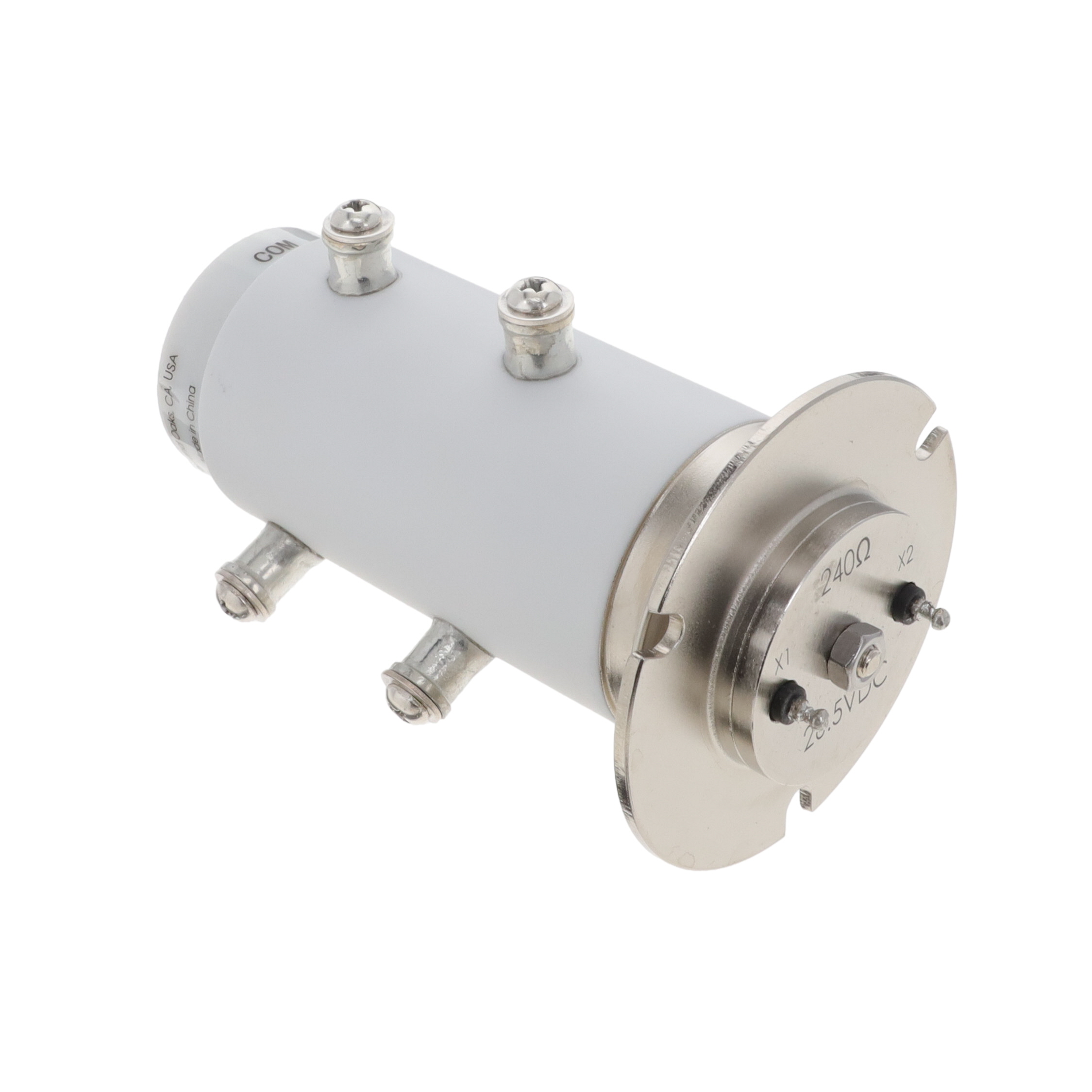

G23WF Sensata - Gigavac Industrial
Favorite
Compare
Manufacturer:
Sensata - Gigavac Industrial
MFR Product Number:
G23WF
Product Number:
G23WF
MFR Standard Lead Time:
18 Weeks
Package/Case:
Detailed Description:
20KV DPDT HV RELAY
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Sensata - Gigavac Industrial
Series
G23
Packaging
Box
Part Status
Active
Mounting Type
Chassis Mount
Coil Voltage
26.5VDC
Contact Form
DPDT (2 Form C)
Contact Rating (Current)
75 A
Switching Voltage
20000VAC, 20000VDC - Max
Features
Sealed - Hermetically
Termination Style
Screw Terminal
Operating Temperature
-55°C ~ 125°C
Must Operate Voltage
16 VDC
Must Release Voltage
1 VDC
Contact Material
Tungsten (W)
Operate Time
30 ms
Release Time
10 ms
Coil Current
110.4 mA
Coil Power
2.9W
Coil Resistance
240Ohms
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
ECCN
EAR99
HTSUS
8536.49.0050
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
-
Additional Resources
Other Names
5115-G23WF
Standard Package
1
