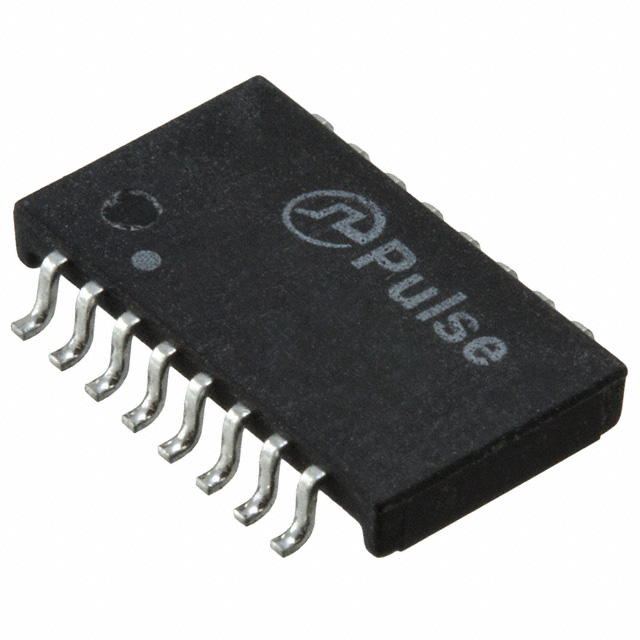

H0056NLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
H0056NLT
Product Number:
H0056NLT
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFRMR MODULE 1PORT 1:1 10/100
Datasheet:
Descnt:
300µH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
Star Magnetics™
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Transformer Type
Isolation and Data Interface (Encapsulated)
Inductance
300µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:1
Mounting Type
Surface Mount
Size / Dimension
0.504" L x 0.280" W (12.80mm x 7.11mm)
Height - Seated (Max)
0.088" (2.24mm)
Operating Temperature
0°C ~ 70°C
Weight
0.01 oz (0.28 g)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Standard Package
2,000
-
