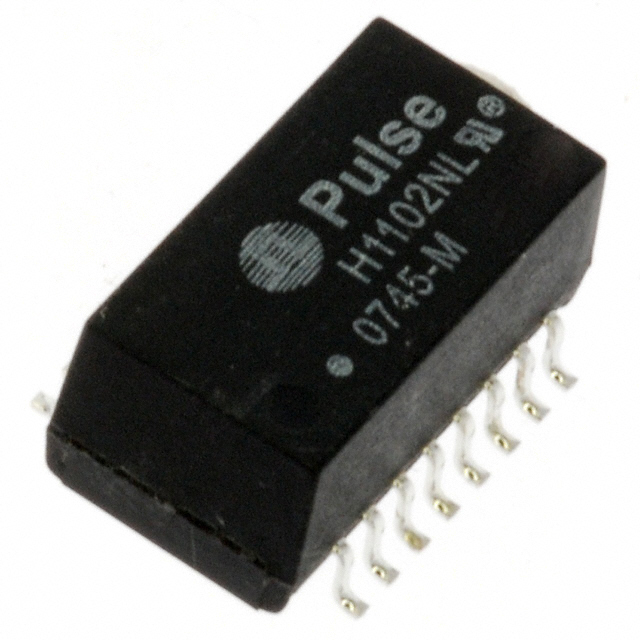

H1102 Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
H1102
Product Number:
H1102
MFR Standard Lead Time:
Package/Case:
Detailed Description:
MODULE XFRMR SGL ETHR LAN 16SOIC
Datasheet:
Descnt:
LAN Pulse Transformer 1CT:1CT Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Bulk
Part Status
Obsolete
Transformer Type
LAN
Inductance
-
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1CT:1CT
Mounting Type
Surface Mount
Size / Dimension
0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max)
0.245" (6.22mm)
Operating Temperature
0°C ~ 70°C
Weight
0.03 oz (0.85 g)
-
Documents & Media
PCN Obsolescence/ EOL
Multiple Devices 03/Oct/2014
Multiple Devices 20/Jun/2014
-
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
553-1203
Standard Package
40
