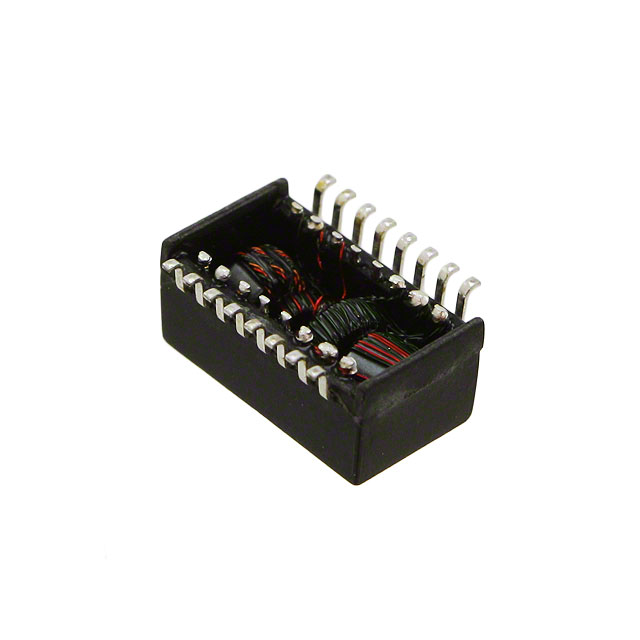

H1121NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
H1121NL
Product Number:
H1121NL
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFRMR MAGNT 1PORT 1:1.414 10/100
Datasheet:
Descnt:
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1.414 Transmitter, 1:1 Receiver Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tube
Part Status
Active
Transformer Type
Isolation and Data Interface (Encapsulated)
Inductance
-
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:1.414 Transmitter, 1:1 Receiver
Mounting Type
Surface Mount
Size / Dimension
0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max)
0.245" (6.22mm)
Operating Temperature
0°C ~ 70°C
Weight
0.03 oz (0.85 g)
-
Documents & Media
PCN Design/Specification
Ink to Laser Marking 03/Jul/2018
Thermoplastic Header Design 28/Jun/2013
HTML Datasheet
10/100Base-T Single Port SMD Magnetics
H1121NL Drawing
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
40
