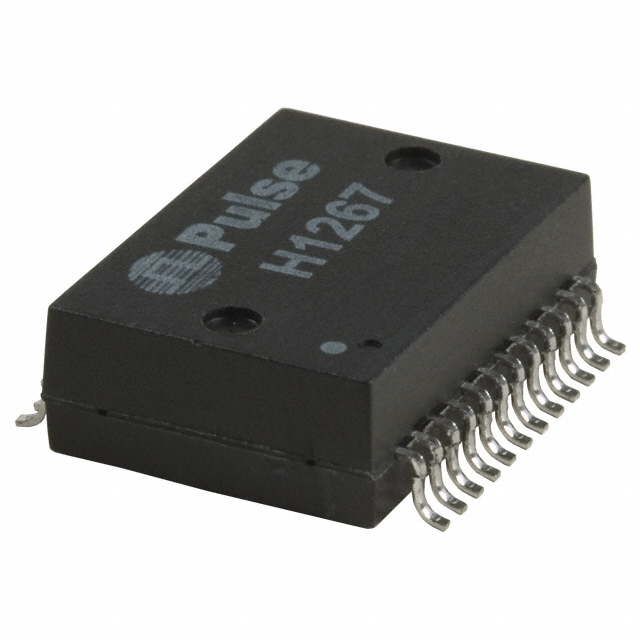

H1267NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
H1267NL
Product Number:
H1267NL
MFR Standard Lead Time:
13 Weeks
Package/Case:
Detailed Description:
MODULE XFRMR SGL ETHR LAN24P SMD
Datasheet:
Descnt:
LAN Pulse Transformer 1CT:1CT Surface Mount
In Stock
275
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tube
Part Status
Active
Transformer Type
LAN
Inductance
-
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1CT:1CT
Mounting Type
Surface Mount
Size / Dimension
0.690" L x 0.480" W (17.53mm x 12.20mm)
Height - Seated (Max)
0.227" (5.76mm)
Operating Temperature
0°C ~ 70°C
Weight
0.1 oz (2.85 g)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
4 (72 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
553-1429
Standard Package
25
