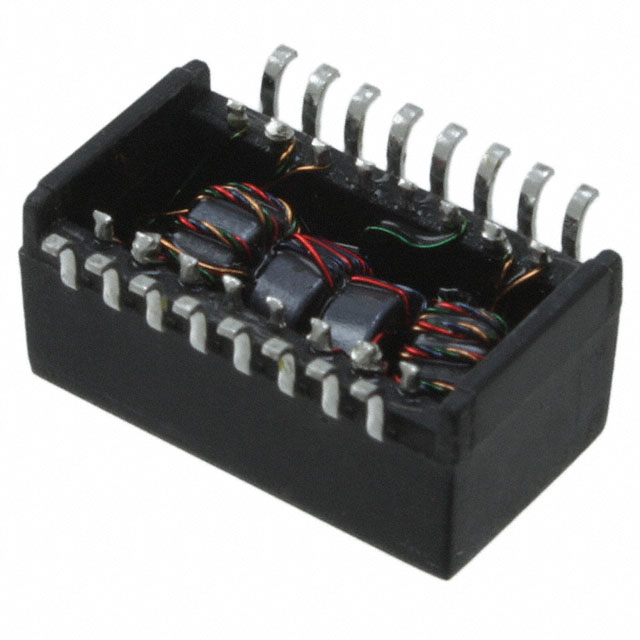

H2260NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
H2260NL
Product Number:
H2260NL
MFR Standard Lead Time:
9 Weeks
Package/Case:
Detailed Description:
XFRMR MODUL 1PORT POE 1:1 10/100
Datasheet:
Descnt:
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
In Stock
470
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
Star Magnetics™
Packaging
Tube
Part Status
Active
Transformer Type
Isolation and Data Interface (Encapsulated)
Inductance
-
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:1
Mounting Type
Surface Mount
Size / Dimension
0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max)
0.240" (6.10mm)
Operating Temperature
0°C ~ 70°C
Weight
0.1 oz (2.85 g)
-
Documents & Media
PCN Design/Specification
Ink to Laser Marking 03/Jul/2018
Thermoplastic Header Design 28/Jun/2013
HTML Datasheet
10/100BASE-T Xfrmr Module,PoE Option
H2260NL Drawing
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
40
