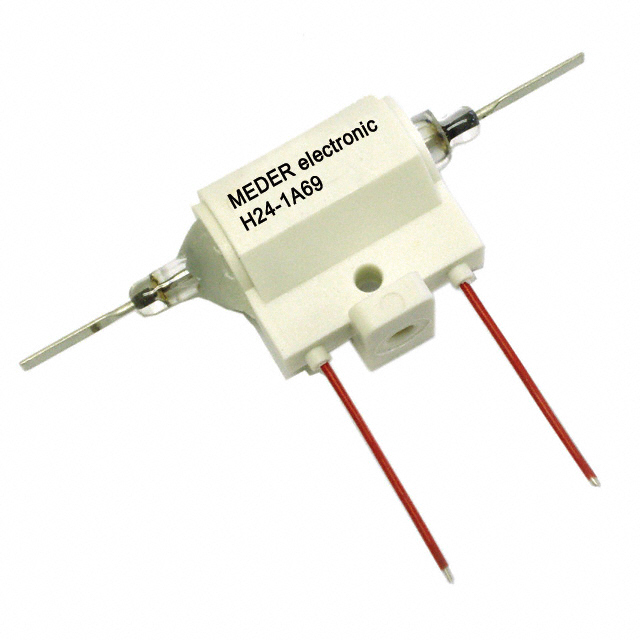

H24-1A69 Standex-Meder Electronics
Favorite
Compare
Manufacturer:
Standex-Meder Electronics
MFR Product Number:
H24-1A69
Product Number:
H24-1A69
MFR Standard Lead Time:
40 Weeks
Package/Case:
Detailed Description:
RELAY REED SPST 3A 24V
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Standex-Meder Electronics
Series
H
Packaging
Bulk
Part Status
Active
Mounting Type
Chassis Mount
Coil Voltage
24VDC
Contact Form
SPST-NO (1 Form A)
Contact Rating (Current)
3 A
Switching Voltage
10000VAC, 10000VDC - Max
Coil Current
34.3 mA
Coil Type
Non Latching
Features
-
Termination Style
Wire Leads
Seal Rating
-
Must Operate Voltage
16.8 VDC
Must Release Voltage
3.6 VDC
Operate Time
3 ms
Release Time
1.5 ms
Operating Temperature
-20°C ~ 70°C
Contact Material
-
Coil Resistance
700 Ohms
-
Documents & Media
Datasheets
H24-1A69 Spec Sheet
H Series Datasheet
Product Training Modules
Magnetic Mapping
Reed Relay Overview
RF Reed Relays Presentation-Part 2
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8536.41.0030
-
Additional Resources
Other Names
Standard Package
12
