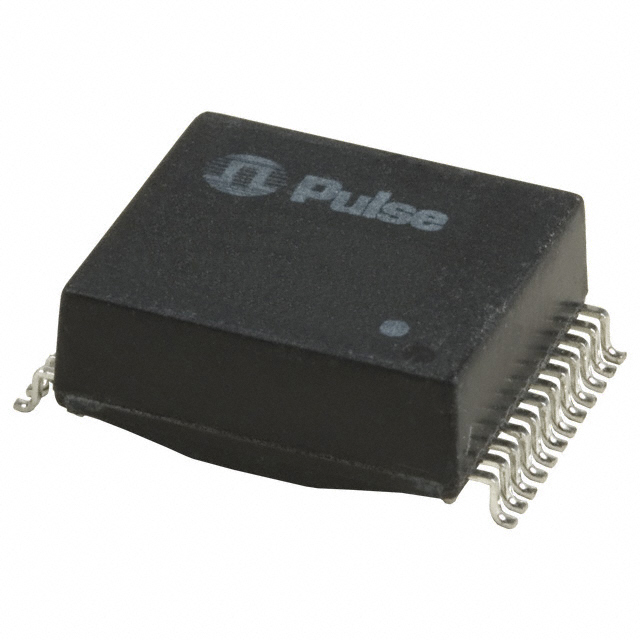

H5009NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
H5009NL
Product Number:
H5009NL
MFR Standard Lead Time:
Package/Case:
Detailed Description:
MODULE XFORMR GIGABIT SINGLE LAN
Datasheet:
Descnt:
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tube
Part Status
Active
Transformer Type
Isolation and Data Interface (Encapsulated)
Inductance
-
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:1
Mounting Type
Surface Mount
Size / Dimension
0.537" L x 0.600" W (13.64mm x 15.24mm)
Height - Seated (Max)
0.235" (5.97mm)
Operating Temperature
0°C ~ 70°C
Weight
0.06 oz (1.71 g)
-
Documents & Media
PCN Design/Specification
Thermoplastic Header Design 28/Jun/2013
Ink to Laser Marking 03/Jul/2018
HTML Datasheet
1000Base-T Magnetics Modules
H5009NL Drawing
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
35
