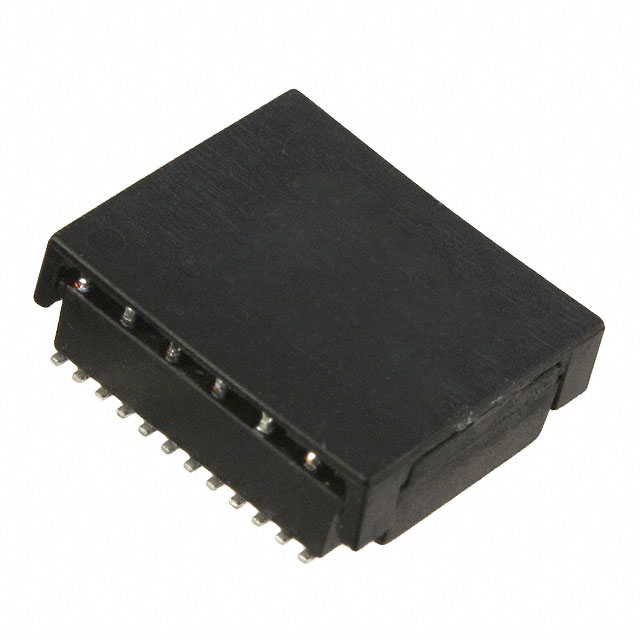

H5077NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
H5077NL
Product Number:
H5077NL
MFR Standard Lead Time:
10 Weeks
Package/Case:
Detailed Description:
MODULE MINI-MAG 1PORT 1000BASE-T
Datasheet:
Descnt:
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
In Stock
1318
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tube
Part Status
Active
Transformer Type
Isolation and Data Interface (Encapsulated)
Inductance
-
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:1
Mounting Type
Surface Mount
Size / Dimension
0.550" L x 0.495" W (13.97mm x 12.57mm)
Height - Seated (Max)
0.190" (4.82mm)
Operating Temperature
0°C ~ 70°C
Weight
0.04 oz (1.14 g)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
35
