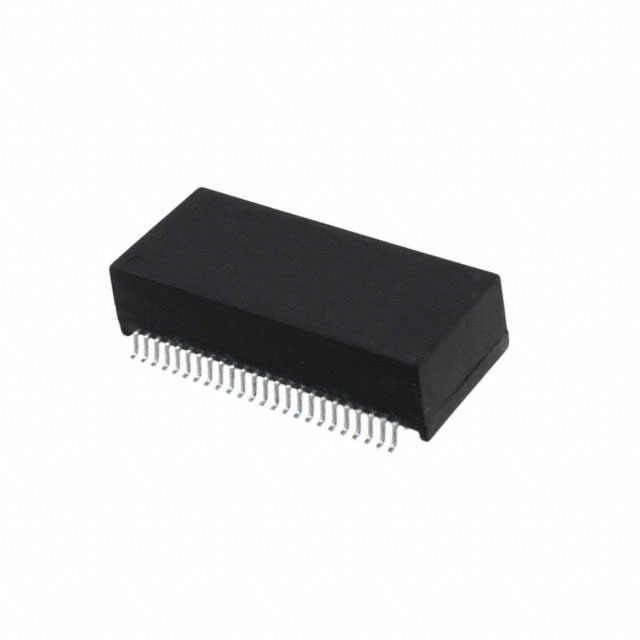

H6080NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
H6080NL
Product Number:
H6080NL
MFR Standard Lead Time:
9 Weeks
Package/Case:
Detailed Description:
XFRMR MODUL GIGABT 2PORT POE 1:1
Datasheet:
Descnt:
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Transmitter, 1:1 Receiver Surface Mount
In Stock
280
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
Star Magnetics™
Packaging
Tube
Part Status
Active
Transformer Type
Isolation and Data Interface (Encapsulated)
Inductance
-
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:1 Transmitter, 1:1 Receiver
Mounting Type
Surface Mount
Size / Dimension
1.095" L x 0.480" W (27.81mm x 12.19mm)
Height - Seated (Max)
0.295" (7.49mm)
Operating Temperature
0°C ~ 70°C
Weight
0.14 oz (3.99 g)
-
Documents & Media
Datasheets
H6080NL Datasheet
Star Magnetics™ Datasheet
Environmental Information
Pulse Larson REACH
Pulse RoHS
PCN Design/Specification
Thermoplastic Header Design 28/Jun/2013
Ink to Laser Marking 03/Jul/2018
-
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
15
