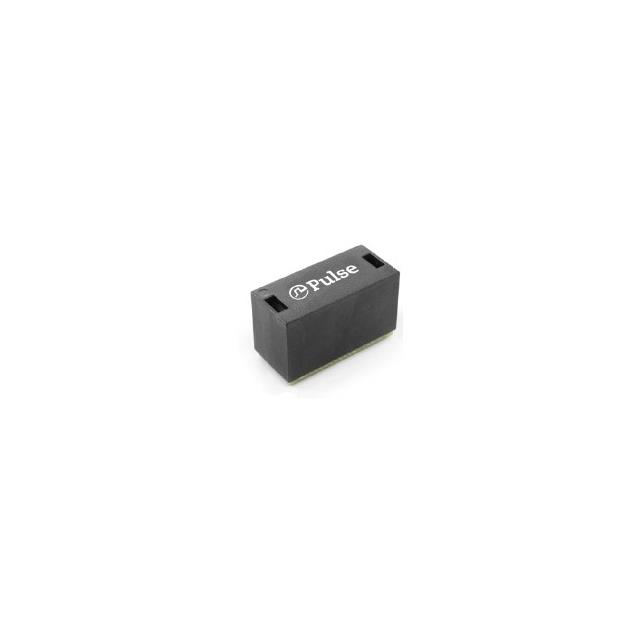

H6600NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
H6600NL
Product Number:
H6600NL
MFR Standard Lead Time:
13 Weeks
Package/Case:
Detailed Description:
XFRMR MODULE SIN 1G 1:1 BGA SMD
Datasheet:
Descnt:
120µH LAN 1G Base-T, Power over Ethernet (PoE) Pulse Transformer 1CT:1CT Surface Mount
In Stock
120
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
H6600NLT
Packaging
Tray
Part Status
Active
Transformer Type
LAN 1G Base-T, Power over Ethernet (PoE)
Inductance
120µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1CT:1CT
Mounting Type
Surface Mount
Size / Dimension
0.310" L x 0.680" W (7.87mm x 17.27mm)
Height - Seated (Max)
0.440" (11.18mm)
Operating Temperature
0°C ~ 70°C
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
553-H6600NL
Standard Package
60
