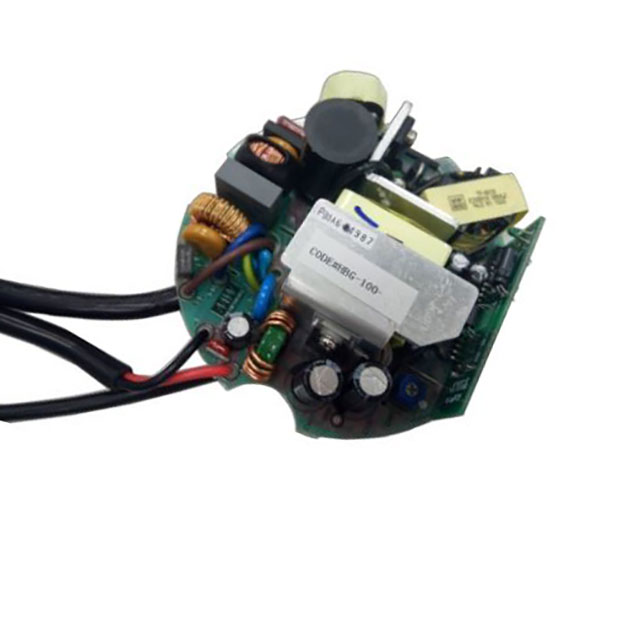

HBG-100P-48DA MEAN WELL USA Inc.
Favorite
Compare
Manufacturer:
MEAN WELL USA Inc.
MFR Product Number:
HBG-100P-48DA
Product Number:
HBG-100P-48DA
MFR Standard Lead Time:
12 Weeks
Package/Case:
Detailed Description:
LED DRIVER CC 100W
Datasheet:
Descnt:
1.6A 21.6 ~ 36V Constant Current LED Driver AC DC Converter Topology 1 Output
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
MEAN WELL USA Inc.
Series
HBG-100P (100W)
Packaging
Box
Part Status
Active
DigiKey Programmable
Not Verified
Type
Constant Current
Topology
AC DC Converter
Number of Outputs
1
Voltage - Input (Min)
90VAC
Voltage - Input (Max)
305VAC
Voltage - Output
21.6 ~ 36V
Current - Output (Max)
1.6A
Power (Watts)
96 W
Voltage - Isolation
3.75 kV
Dimming
Analog, PWM
Features
OTP, OVP, SCP
Ratings
-
Operating Temperature
-
Efficiency
91%
Termination Style
Wire Leads
Size / Dimension
4.09" Dia x 1.34" H (104.0mm x 34.0mm)
Approval Agency
CB, CCC, CE, cURus, ENEC
Standard Number
UL 8750
Mounting Type
Chassis Mount
Weight
-
Base Product Number
HBG-100
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.40.9520
-
Additional Resources
Other Names
1866-HBG-100P-48DA
Standard Package
45
