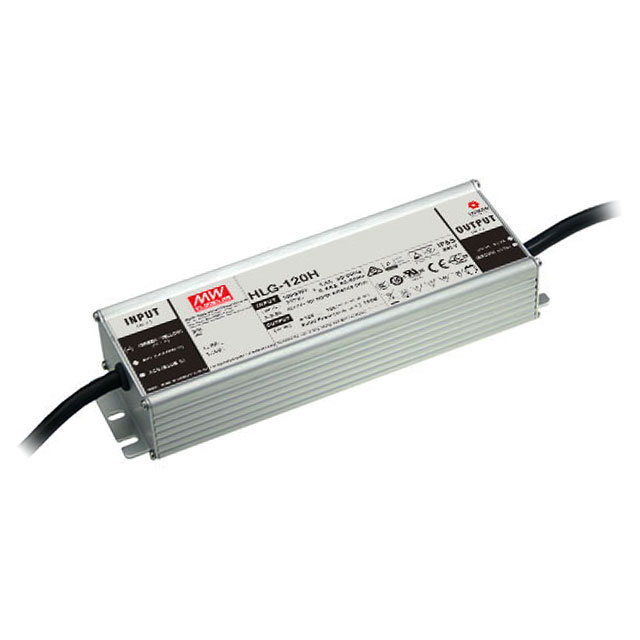

HLG-120H-12AB MEAN WELL USA Inc.
Favorite
Compare
Manufacturer:
MEAN WELL USA Inc.
MFR Product Number:
HLG-120H-12AB
Product Number:
HLG-120H-12AB
MFR Standard Lead Time:
12 Weeks
Package/Case:
Detailed Description:
O/P +12V10A
Datasheet:
Descnt:
10A 12V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
In Stock
15
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
MEAN WELL USA Inc.
Series
HLG-120H (120W)
Packaging
Box
Part Status
Active
DigiKey Programmable
Not Verified
Type
Constant Current, Voltage
Topology
AC DC Converter
Number of Outputs
1
Voltage - Input (Min)
90VAC
Voltage - Input (Max)
305VAC
Voltage - Output
12V
Current - Output (Max)
10A
Power (Watts)
120 W
Voltage - Isolation
3.75 kV
Dimming
Analog, PWM
Features
OCP, OTP, OVP, SCP
Ratings
IP65
Operating Temperature
-40°C ~ 80°C
Efficiency
92%
Termination Style
Wire Leads
Size / Dimension
7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm)
Approval Agency
CB, CCC, CE, cURus, ENEC, KC, PSE, RCM, TUV
Mounting Type
Chassis Mount
Base Product Number
HLG-120H
Documents & Media
Datasheets
Environmental Information
Mean Well USA RoHS Cert
Mean Well USA REACH
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.40.9520
-
Additional Resources
Other Names
1866-HLG-120H-12AB
Standard Package
12
