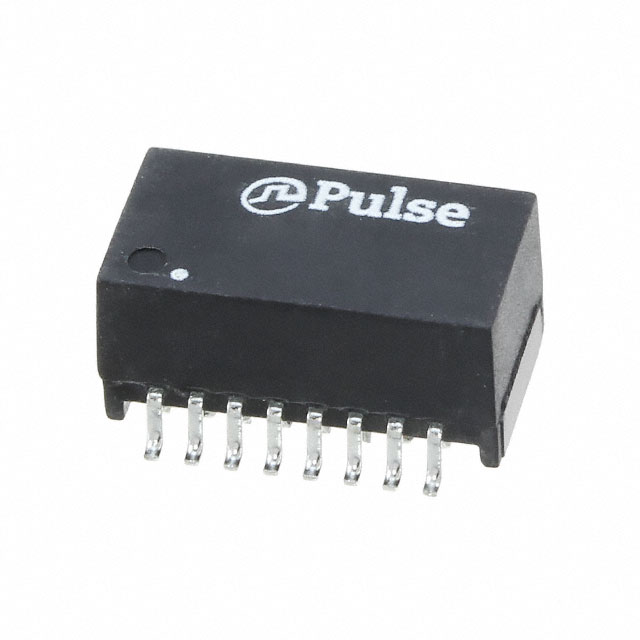

HM1188NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
HM1188NL
Product Number:
HM1188NL
MFR Standard Lead Time:
12 Weeks
Package/Case:
Detailed Description:
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet:
Descnt:
350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
In Stock
1963
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tube
Part Status
Active
Transformer Type
LAN 10/100 Base-T
Inductance
350µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type
Surface Mount
Size / Dimension
0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max)
0.235" (5.97mm)
Operating Temperature
-40°C ~ 105°C
Weight
-
-
Documents & Media
Featured Product
Battery Management System (BMS) Components
Automotive Communication - Ethernet and CMC Magnetics
Component Solutions for BMS
Product Drawings
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
40
