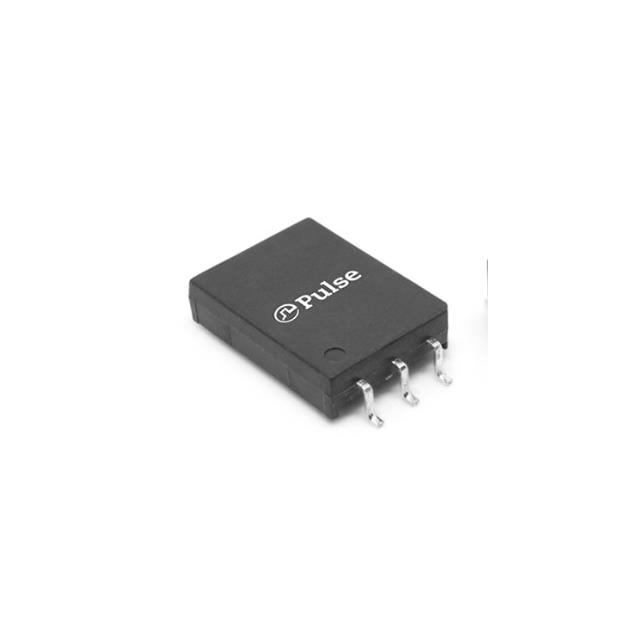

HM2113ZNLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
HM2113ZNLT
Product Number:
HM2113ZNLT
MFR Standard Lead Time:
15 Weeks
Package/Case:
Detailed Description:
XFMR CMC MODULE AECQ BATT MNGT
Datasheet:
Descnt:
150µH, 450µH Pulse Transformer 1:1 Surface Mount
In Stock
4200
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Transformer Type
-
Inductance
150µH, 450µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:1
Mounting Type
Surface Mount
Size / Dimension
0.354" L x 0.478" W (9.00mm x 12.15mm)
Height - Seated (Max)
0.136" (3.45mm)
Operating Temperature
-40°C ~ 125°C
Weight
-
-
Documents & Media
Featured Product
Battery Management System (BMS) Components
Component Solutions for BMS
Product Drawings
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
900
