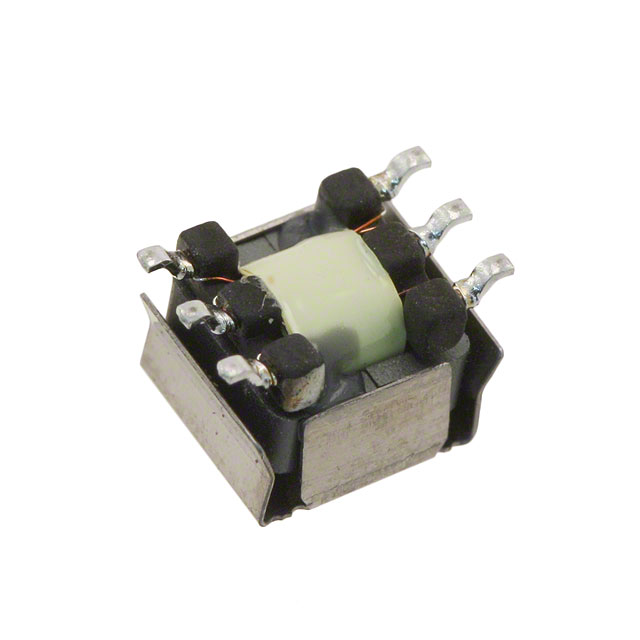

HM42-10002LFTR TT Electronics/BI Magnetics
Favorite
Compare
Manufacturer:
TT Electronics/BI Magnetics
MFR Product Number:
HM42-10002LFTR
Product Number:
HM42-10002LFTR
MFR Standard Lead Time:
Package/Case:
Detailed Description:
PULSE XFMR 2:1:1 300UH
Datasheet:
Descnt:
300µH Gate Drive Pulse Transformer 2:1:1 Surface Mount
In Stock
324
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
TT Electronics/BI Magnetics
Series
HM42
Packaging
Cut Tape (CT)
Part Status
Discontinued at Digi-Key
Transformer Type
Gate Drive
Inductance
300µH
ET (Volt-Time)
40.4VµS
Turns Ratio - Primary:Secondary
2:1:1
Mounting Type
Surface Mount
Size / Dimension
0.260" L x 0.319" W (6.60mm x 8.10mm)
Height - Seated (Max)
0.217" (5.50mm)
Operating Temperature
-40°C ~ 125°C
Weight
-
Base Product Number
HM42
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
Additional Resources
Other Names
Standard Package
750
