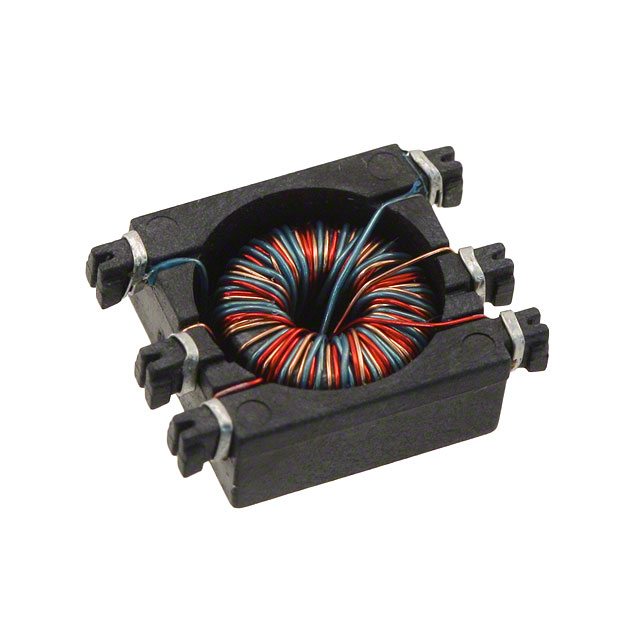

HM42-30001LFTR TT Electronics/BI Magnetics
Favorite
Compare
Manufacturer:
TT Electronics/BI Magnetics
MFR Product Number:
HM42-30001LFTR
Product Number:
HM42-30001LFTR
MFR Standard Lead Time:
Package/Case:
Detailed Description:
PULSE XFMR 1:1:1 980UH
Datasheet:
Descnt:
980µH Gate Drive Pulse Transformer 1:1:1 Surface Mount
In Stock
146
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
TT Electronics/BI Magnetics
Series
HM42
Packaging
Cut Tape (CT)
Part Status
Discontinued at Digi-Key
Transformer Type
Gate Drive
Inductance
980µH
ET (Volt-Time)
30.2VµS
Turns Ratio - Primary:Secondary
1:1:1
Mounting Type
Surface Mount
Size / Dimension
0.340" L x 0.460" W (8.64mm x 11.68mm)
Height - Seated (Max)
0.161" (4.10mm)
Operating Temperature
-40°C ~ 125°C
Weight
-
Base Product Number
HM42
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
Additional Resources
Other Names
Standard Package
1,000
