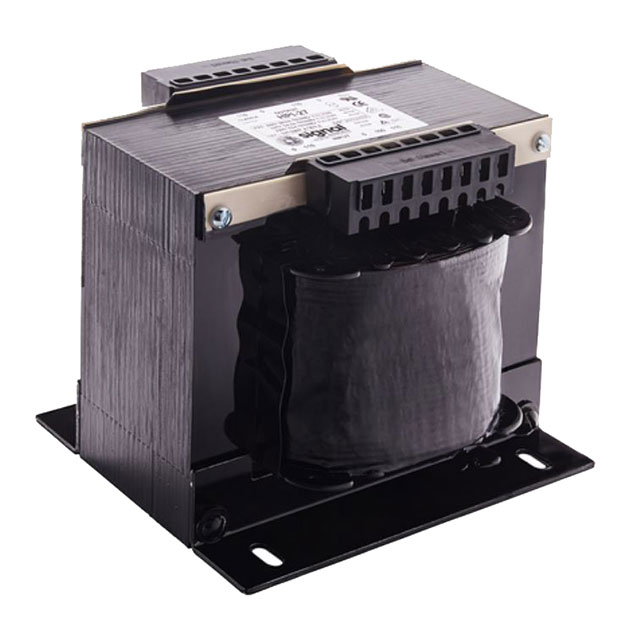

HPI-17 Signal Transformer
Favorite
Compare
Manufacturer:
Signal Transformer
MFR Product Number:
HPI-17
Product Number:
HPI-17
MFR Standard Lead Time:
18 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 1750VA CHAS
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Signal Transformer
Series
HPI
Packaging
Bulk
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
Parallel 115V, Series 230V
Current - Output (Max)
Parallel 15.2A, Series 7.6A
Primary Winding(s)
Dual, Multiple Taps
Secondary Winding(s)
Dual
Center Tap
No
Power - Max
1750VA
Mounting Type
Chassis Mount
Termination Style
Terminal Block
Size / Dimension
179.30mm L x 149.70mm W
Height - Seated (Max)
154.90mm
Voltage - Isolation
4000Vrms
Weight
39 lbs (17.7 kg)
Documents & Media
Datasheets
Video File
What are Transformers? How Do They Work? - Another Teaching Moment
How to Connect Series and Parallel Transformers
Bel Solutions for Medical Applications
Environmental Information
Signal Transformer REACH
RoHS EU Declaration Signal Transformer
RoHS EU Declaration Signal Transformer
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Standard Package
1
-
