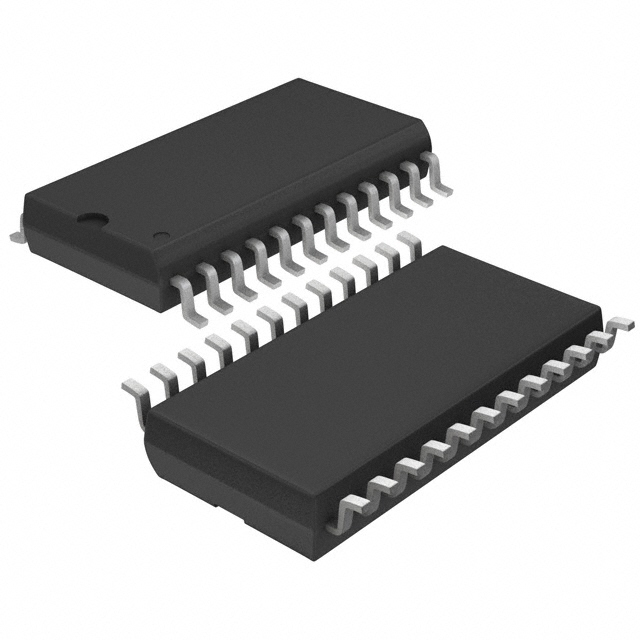

HV9980WG-G Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
HV9980WG-G
Product Number:
HV9980WG-G
MFR Standard Lead Time:
7 Weeks
Package/Case:
24-SOIC (0.295\, 7.50mm Width)
Detailed Description:
IC LED DRVR RGLTR PWM 80MA 24SO
Datasheet:
Descnt:
LED Driver IC 3 Output DC DC Regulator Step-Down (Buck) PWM Dimming 80mA 24-SO
In Stock
896
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Microchip Technology
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
DC DC Regulator
Topology
Step-Down (Buck)
Internal Switch(s)
Yes
Number of Outputs
3
Voltage - Supply (Min)
100V
Voltage - Supply (Max)
160V
Voltage - Output
200V
Current - Output / Channel
80mA
Frequency
500kHz
Dimming
PWM
Applications
Backlight, Lighting
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
24-SOIC (0.295", 7.50mm Width)
Supplier Device Package
24-SO
Base Product Number
HV9980
Documents & Media
Design Resources
HV9980 Development Tool Selector
Lighting Product Selector
PCN Assembly/Origin
PCN Packaging
Packing Changes 10/Oct/2016
Label and Packing Changes 23/Sep/2015
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1,000
