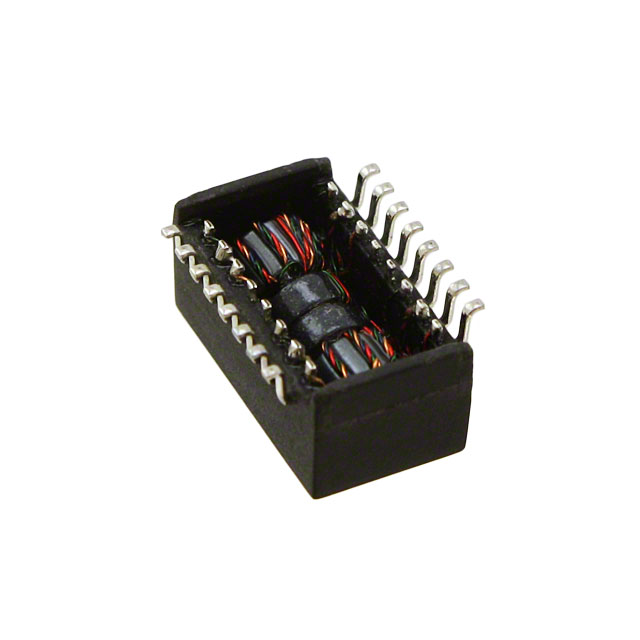

HX1188NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
HX1188NL
Product Number:
HX1188NL
MFR Standard Lead Time:
10 Weeks
Package/Case:
Detailed Description:
MODULE XFRMR SGL ETHR LAN 16SOIC
Datasheet:
Descnt:
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Transmitter, 1:1 Receiver Surface Mount
In Stock
5773
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tube
Part Status
Active
Transformer Type
Isolation and Data Interface (Encapsulated)
Inductance
-
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:1 Transmitter, 1:1 Receiver
Mounting Type
Surface Mount
Size / Dimension
0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max)
0.245" (6.22mm)
Operating Temperature
-40°C ~ 85°C
Weight
0.03 oz (0.85 g)
-
Documents & Media
Datasheets
HX1188NL Datasheet
10/100Base-T Single Port SMD Magnetics
Environmental Information
PCN Design/Specification
Thermoplastic Header Design 28/Jun/2013
Laser Marking 27/Mar/2017
HTML Datasheet
10/100Base-T Single Port SMD Magnetics
HX1188NL Drawing
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
40
