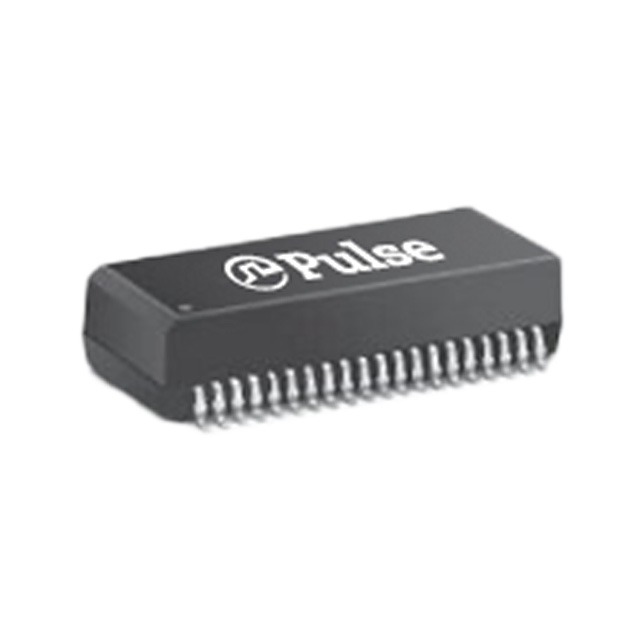

HX1259NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
HX1259NL
Product Number:
HX1259NL
MFR Standard Lead Time:
11 Weeks
Package/Case:
Detailed Description:
XFRMR MODULE 4PORT 1:1 10/100
Datasheet:
Descnt:
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
In Stock
225
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
Star Magnetics™
Packaging
Tube
Part Status
Active
Transformer Type
Isolation and Data Interface (Encapsulated)
Inductance
-
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:1
Mounting Type
Surface Mount
Size / Dimension
1.110" L x 0.480" W (28.19mm x 12.19mm)
Height - Seated (Max)
0.235" (5.97mm)
Operating Temperature
-40°C ~ 85°C
Weight
0.17 oz (4.84 g)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
15
