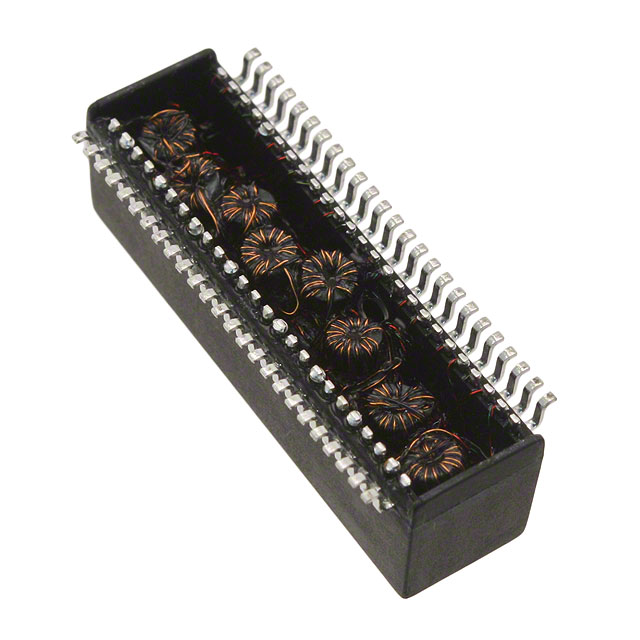

HX5020 Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
HX5020
Product Number:
HX5020
MFR Standard Lead Time:
Package/Case:
Detailed Description:
MODULE DL GIGABIT ETHER LAN 48P
Datasheet:
Descnt:
LAN 1000 Base-T Pulse Transformer 1CT:1CT Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Bulk
Part Status
Obsolete
Transformer Type
LAN 1000 Base-T
Inductance
-
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1CT:1CT
Mounting Type
Surface Mount
Size / Dimension
1.100" L x 0.297" W (27.94mm x 7.54mm)
Height - Seated (Max)
0.341" (8.66mm)
Operating Temperature
-40°C ~ 85°C
Weight
0.06 oz (1.71 g)
-
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
553-1198
Standard Package
15
