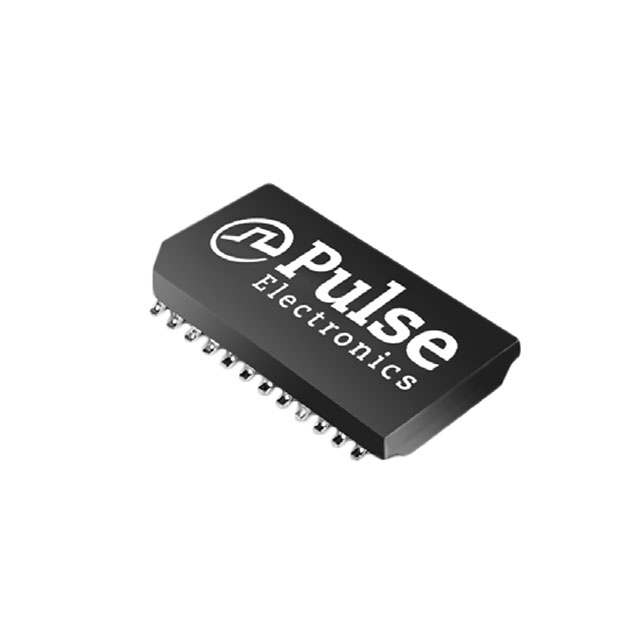

HX5149NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
HX5149NL
Product Number:
HX5149NL
MFR Standard Lead Time:
9 Weeks
Package/Case:
Detailed Description:
PULSE XFMR 1:1 360UH
Datasheet:
Descnt:
360µH LAN 10/100/1000 Base-T Pulse Transformer 1:1 Surface Mount
In Stock
158
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tube
Part Status
Active
Transformer Type
LAN 10/100/1000 Base-T
Inductance
360µH
Turns Ratio - Primary:Secondary
1:1
Mounting Type
Surface Mount
Size / Dimension
0.700" L x 0.390" W (17.78mm x 9.91mm)
Height - Seated (Max)
0.126" (3.20mm)
Operating Temperature
-40°C ~ 85°C
-
Documents & Media
Datasheets
HX5149NL Datasheet
H5138NL, H/HX5149NL Datasheet
Environmental Information
HX5149NL Cert of Compliance
Pulse RoHS
HTML Datasheet
H5138NL, H/HX5149NL Datasheet
HX5149NL Datasheet
-
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
25
