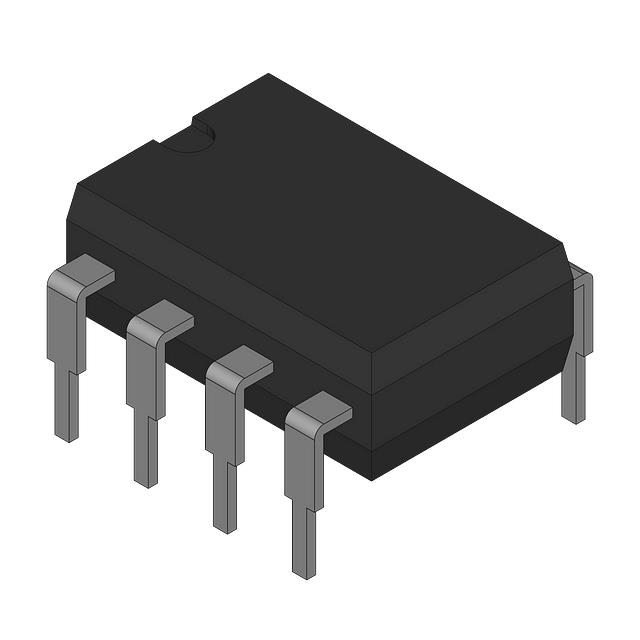

ICE3AR10080JZTXKLA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
ICE3AR10080JZTXKLA1
Product Number:
ICE3AR10080JZTXKLA1
MFR Standard Lead Time:
Package/Case:
8-DIP (0.300\, 7.62mm), 7 Leads
Detailed Description:
1.1A, 113KHZ SWITCHING FREQ-MAX
Datasheet:
Descnt:
Converter Offline Flyback Topology 100kHz PG-DIP-7-4
In Stock
500
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
CoolSET®-F3r80
Packaging
Bulk
Part Status
Active
Output Isolation
Isolated
Internal Switch(s)
Yes
Voltage - Breakdown
800V
Topology
Flyback
Voltage - Start Up
17 V
Voltage - Supply (Vcc/Vdd)
10.5V ~ 27V
Duty Cycle
75%
Frequency - Switching
100kHz
Power (Watts)
22 W
Fault Protection
Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, UVLO
Control Features
Soft Start
Operating Temperature
-20°C ~ 150°C (TJ)
Package / Case
8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package
PG-DIP-7-4
Mounting Type
Through Hole
Base Product Number
ICE3AR10080
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
353
