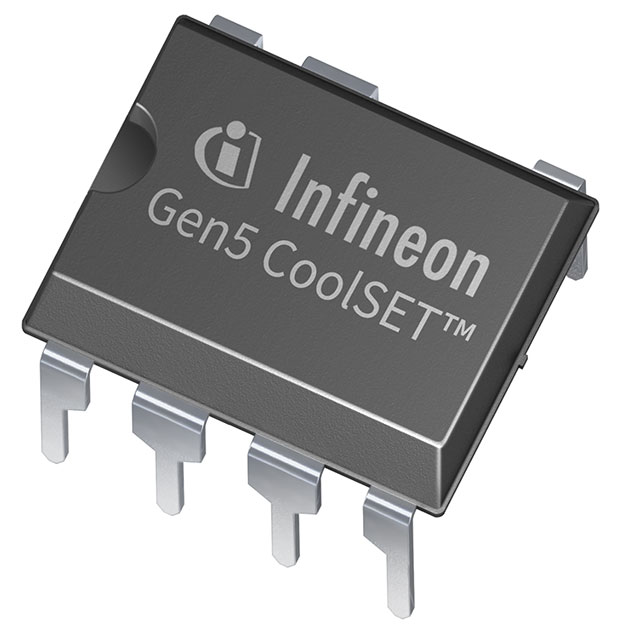

ICE5BR4780BZXKLA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
ICE5BR4780BZXKLA1
Product Number:
ICE5BR4780BZXKLA1
MFR Standard Lead Time:
13 Weeks
Package/Case:
8-DIP (0.300\, 7.62mm), 7 Leads
Detailed Description:
COOLSET (INCL. GEN5) PG-DIP-7
Datasheet:
Descnt:
Converter Offline Buck, Flyback Topology 65kHz PG-DIP-7
In Stock
1896
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
CoolSET™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status
Active
Output Isolation
Non-Isolated
Internal Switch(s)
Yes
Voltage - Breakdown
800V
Topology
Buck, Flyback
Voltage - Start Up
16 V
Voltage - Supply (Vcc/Vdd)
10V ~ 27V
Duty Cycle
75%
Frequency - Switching
65kHz
Power (Watts)
27.5 W
Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features
Soft Start
Operating Temperature
-40°C ~ 150°C (TJ)
Package / Case
8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package
PG-DIP-7
Mounting Type
Through Hole
Base Product Number
ICE5BR4780
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
