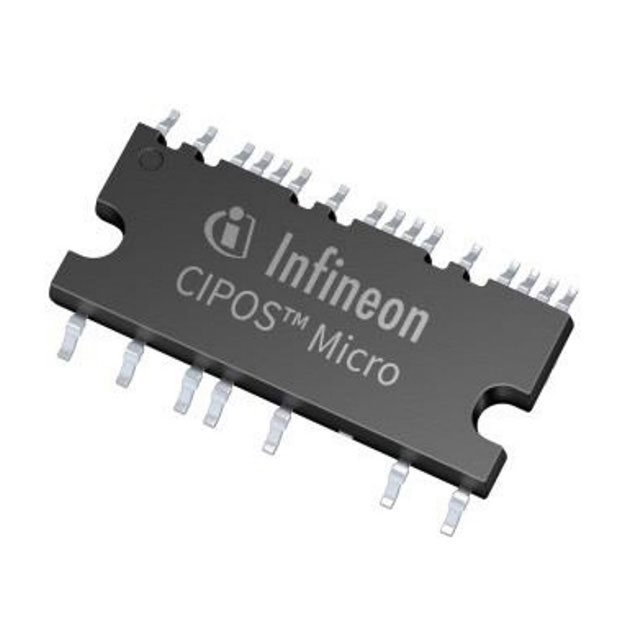

IM231M6S1BALMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
IM231M6S1BALMA1
Product Number:
IM231M6S1BALMA1
MFR Standard Lead Time:
Package/Case:
23-PowerSMD Module, Gull Wing
Detailed Description:
CIPOS MICRO
Datasheet:
Descnt:
Multiphase Motor Driver IGBT 23-SOP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
CIPOS™ IPM
Packaging
Tube
Part Status
Obsolete
Motor Type - Stepper
Multiphase
Motor Type - AC, DC
-
Function
Driver
Output Configuration
Half Bridge (3)
Interface
-
Technology
IGBT
Step Resolution
-
Applications
Fan Motor Driver
Current - Output
4A
Voltage - Supply
13.5V ~ 16.5V
Voltage - Load
450V
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
23-PowerSMD Module, Gull Wing
Supplier Device Package
23-SOP
Base Product Number
IM231M6
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
240
