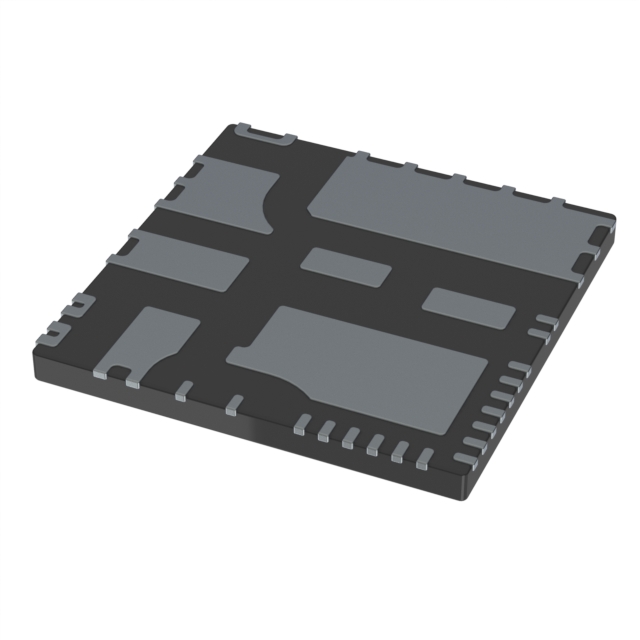

IMM101T056MXUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
IMM101T056MXUMA1
Product Number:
IMM101T056MXUMA1
MFR Standard Lead Time:
30 Weeks
Package/Case:
38-PowerVQFN
Detailed Description:
IMOTION
Datasheet:
Descnt:
Bipolar Motor Driver Power MOSFET PWM PG-IQFN-38-1
In Stock
1994
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
iMOTION™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Motor Type - Stepper
Bipolar
Motor Type - AC, DC
Brushless DC (BLDC)
Function
Driver
Output Configuration
Half Bridge (3)
Interface
PWM
Technology
Power MOSFET
Step Resolution
-
Applications
General Purpose
Current - Output
4A
Voltage - Supply
13.5V ~ 16.5V
Voltage - Load
-
Operating Temperature
-40°C ~ 115°C (TJ)
Mounting Type
Surface Mount
Package / Case
38-PowerVQFN
Supplier Device Package
PG-IQFN-38-1
Base Product Number
IMM101
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
