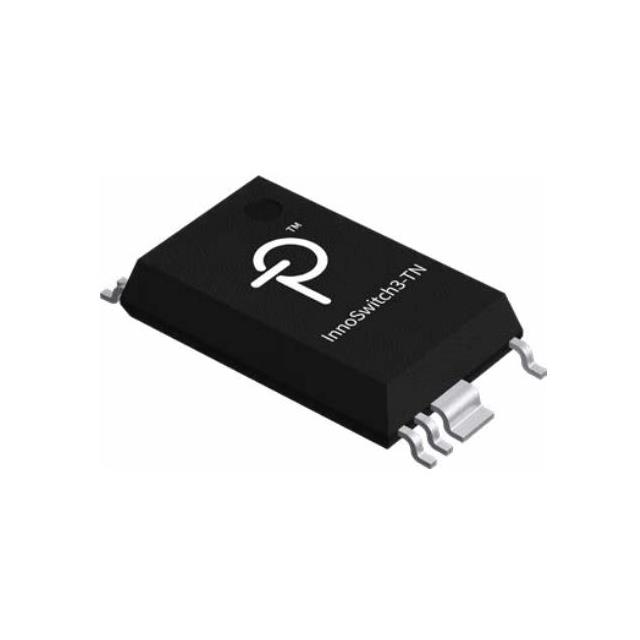

INN3073M-H606-TL Power Integrations
Favorite
Compare
Manufacturer:
Power Integrations
MFR Product Number:
INN3073M-H606-TL
Product Number:
INN3073M-H606-TL
MFR Standard Lead Time:
8 Weeks
Package/Case:
16-PowerSMD Module (0.354\, 9.00mm Width), 12 Leads
Detailed Description:
INNOSWITCH3-TN 12 W 85-265 VAC
Datasheet:
Descnt:
Converter Offline Flyback, Secondary Side SR Topology 25kHz ~ 95kHz MinSOP-16A
In Stock
1890
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Power Integrations
Series
InnoSwitch™4-TN
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Isolation
Either
Internal Switch(s)
Yes
Voltage - Breakdown
725V
Topology
Flyback, Secondary Side SR
Voltage - Start Up
650 mV
Voltage - Supply (Vcc/Vdd)
3.8V
Duty Cycle
-
Frequency - Switching
25kHz ~ 95kHz
Power (Watts)
15 W
Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features
Frequency Control
Operating Temperature
-40°C ~ 105°C (TA)
Package / Case
16-PowerSMD Module (0.354", 9.00mm Width), 12 Leads
Supplier Device Package
MinSOP-16A
Mounting Type
Surface Mount
Base Product Number
INN3073
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
