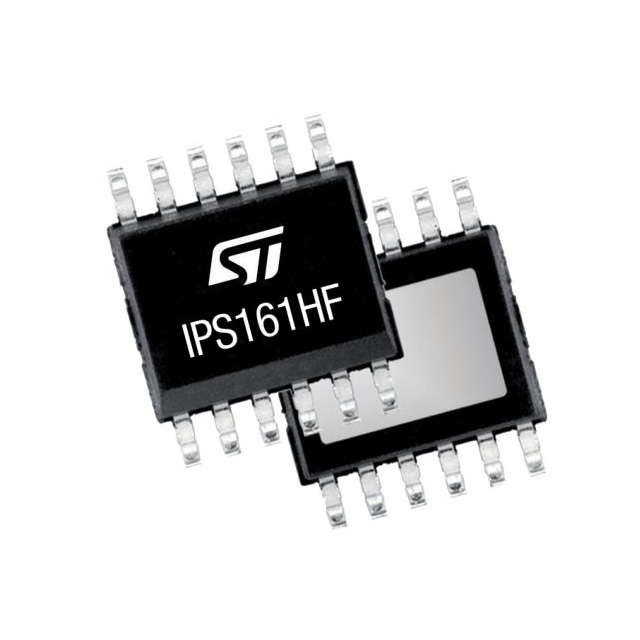

IPS161HFTR STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
IPS161HFTR
Product Number:
IPS161HFTR
MFR Standard Lead Time:
16 Weeks
Package/Case:
12-LSOP (0.154\, 3.90mm Width) Exposed Pad
Detailed Description:
SINGLE CHANNEL HIGH-SIDE SWITCHE
Datasheet:
Descnt:
Power Switch/Driver 1:1 P-Channel 600mA PowerSSO-12
In Stock
5428
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
STMicroelectronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
P-Channel
Interface
-
Voltage - Load
8V ~ 60V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
600mA
Rds On (Typ)
60mOhm
Input Type
Non-Inverting
Features
-
Fault Protection
Current Limiting (Fixed), Open Load Detect, Over Temperature
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
PowerSSO-12
Package / Case
12-LSOP (0.154", 3.90mm Width) Exposed Pad
Base Product Number
IPS161
Documents & Media
Datasheets
Featured Product
IPS160HF and IPS161HF Single-Channel High-Side Switches
STEVAL-FSM01M1 Advanced Dual-Channel Digital I/O Module
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
