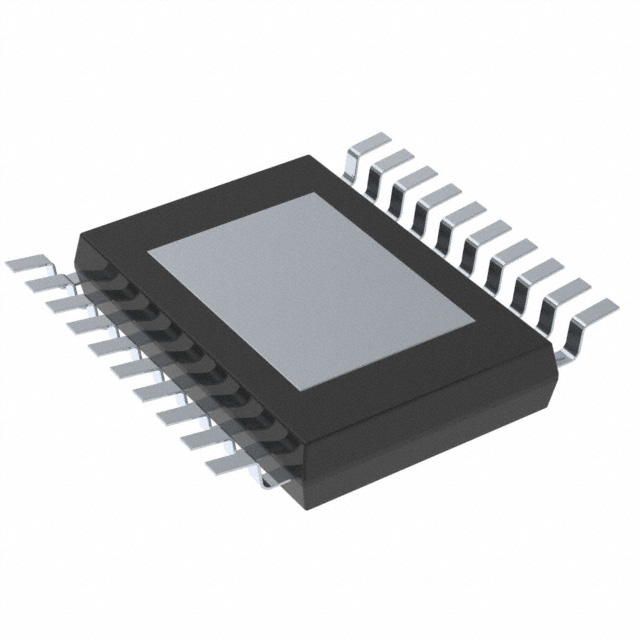

IPS4260LTR STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
IPS4260LTR
Product Number:
IPS4260LTR
MFR Standard Lead Time:
12 Weeks
Package/Case:
20-TSSOP (0.173\, 4.40mm Width) Exposed Pad
Detailed Description:
IC PWR SWTCH P-CHAN 1:1 20HTSSOP
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 2A 20-HTSSOP
In Stock
4184
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
STMicroelectronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
4
Ratio - Input:Output
1:1
Output Configuration
Low Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
7V ~ 50V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
2A
Rds On (Typ)
280mOhm
Input Type
-
Features
-
Fault Protection
Current Limiting (Fixed), Open Load Detect, Over Temperature
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
20-HTSSOP
Package / Case
20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Base Product Number
IPS4260
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
