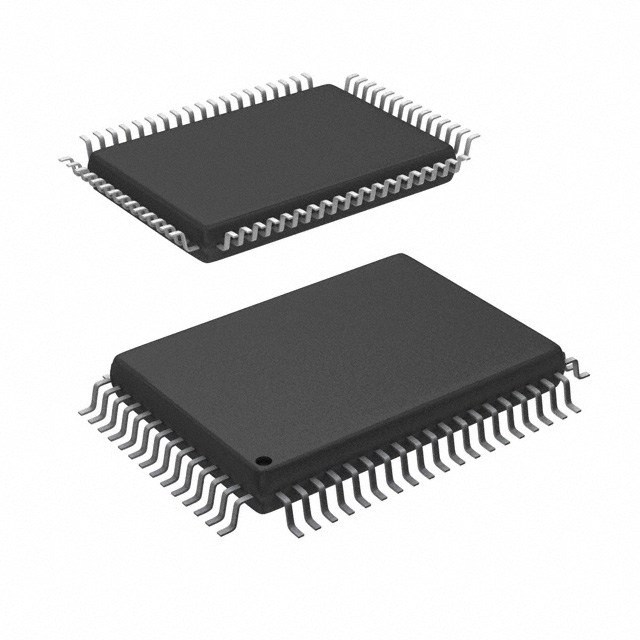

IR2238QPBF Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
IR2238QPBF
Product Number:
IR2238QPBF
MFR Standard Lead Time:
Package/Case:
64-BQFP
Detailed Description:
IC MOTOR DRIVER 12.5V-20V 64MQFP
Datasheet:
Descnt:
Motor Driver IGBT Parallel 64-MQFP (20x14)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
-
Packaging
Tray
Part Status
Obsolete
Motor Type - Stepper
-
Motor Type - AC, DC
AC, Synchronous
Function
Controller - Commutation, Direction Management
Output Configuration
Pre-Driver - Half Bridge (3)
Interface
Parallel
Technology
IGBT
Step Resolution
-
Applications
General Purpose
Current - Output
-
Voltage - Supply
12.5V ~ 20V
Voltage - Load
-
Operating Temperature
-20°C ~ 115°C (TA)
Mounting Type
Surface Mount
Package / Case
64-BQFP
Supplier Device Package
64-MQFP (20x14)
Base Product Number
IR2238
Documents & Media
PCN Packaging
Barcode Label Update 24/Feb/2017
Packing Material Update 16/Sep/2016
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.31.0001
-
Additional Resources
Other Names
Standard Package
330
