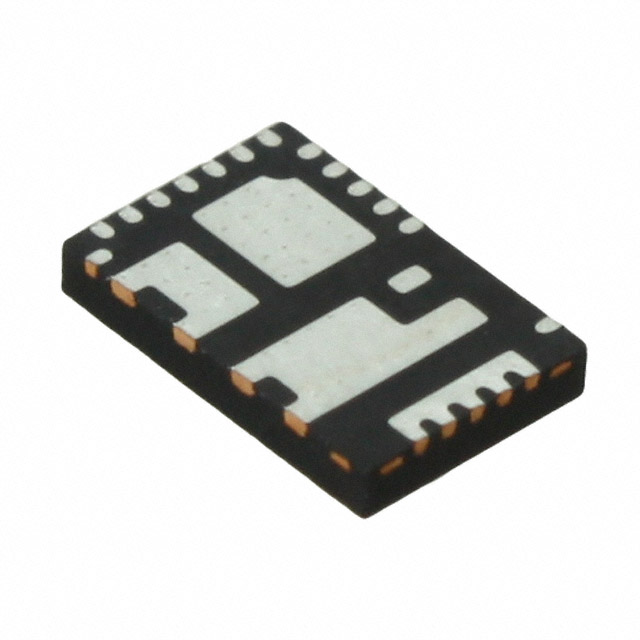

IR3553MTRPBF Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
IR3553MTRPBF
Product Number:
IR3553MTRPBF
MFR Standard Lead Time:
Package/Case:
25-PowerVFQFN
Detailed Description:
IC HALF BRIDGE DRIVER 40A 2PQFN
Datasheet:
Descnt:
Half Bridge Driver Synchronous Buck Converters, Voltage Regulators Power MOSFET 25-PQFN (4x6)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
PowIRstage®
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Output Configuration
Half Bridge
Applications
Synchronous Buck Converters, Voltage Regulators
Interface
PWM
Load Type
Inductive
Technology
Power MOSFET
Rds On (Typ)
-
Current - Output / Channel
40A
Current - Peak Output
60A
Voltage - Supply
4.5V ~ 7V
Voltage - Load
4.5V ~ 15V
Operating Temperature
-40°C ~ 125°C (TJ)
Features
Bootstrap Circuit, Diode Emulation, Status Flag
Fault Protection
Over Temperature, UVLO
Mounting Type
Surface Mount
Package / Case
25-PowerVFQFN
Supplier Device Package
25-PQFN (4x6)
Base Product Number
IR3553
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
