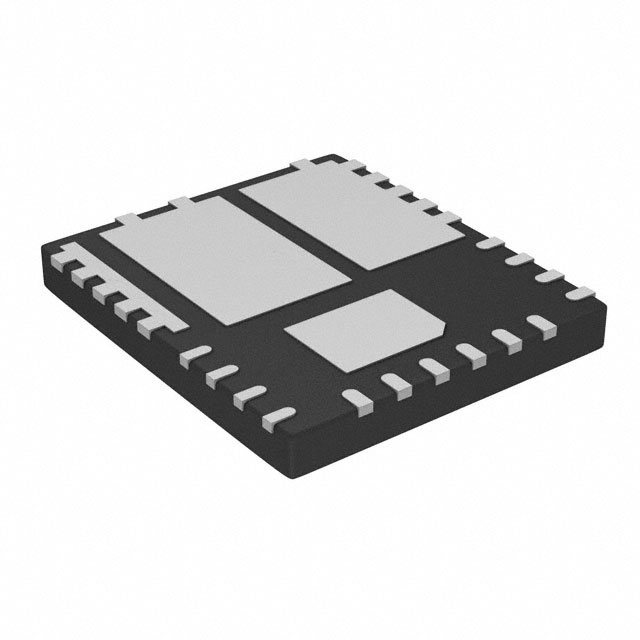

IRSM005-301MHTR Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
IRSM005-301MHTR
Product Number:
IRSM005-301MHTR
MFR Standard Lead Time:
27 Weeks
Package/Case:
27-PowerVQFN
Detailed Description:
IC HALF BRIDGE DRIVER 30A 27QFN
Datasheet:
Descnt:
Half Bridge Driver AC Motors, DC Motors, DC-DC Converters, General Purpose Power MOSFET 27-PQFN (7x8)
In Stock
2
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
µIPM™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Half Bridge
Applications
AC Motors, DC Motors, DC-DC Converters, General Purpose
Interface
Logic
Load Type
Inductive, Capacitive
Technology
Power MOSFET
Rds On (Typ)
16mOhm
Current - Output / Channel
30A
Current - Peak Output
-
Voltage - Supply
10V ~ 20V
Voltage - Load
100V (Max)
Operating Temperature
150°C (TJ)
Grade
-
Qualification
-
Features
Bootstrap Circuit
Fault Protection
UVLO
Mounting Type
Surface Mount
Package / Case
27-PowerVQFN
Supplier Device Package
27-PQFN (7x8)
Base Product Number
IRSM005
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
