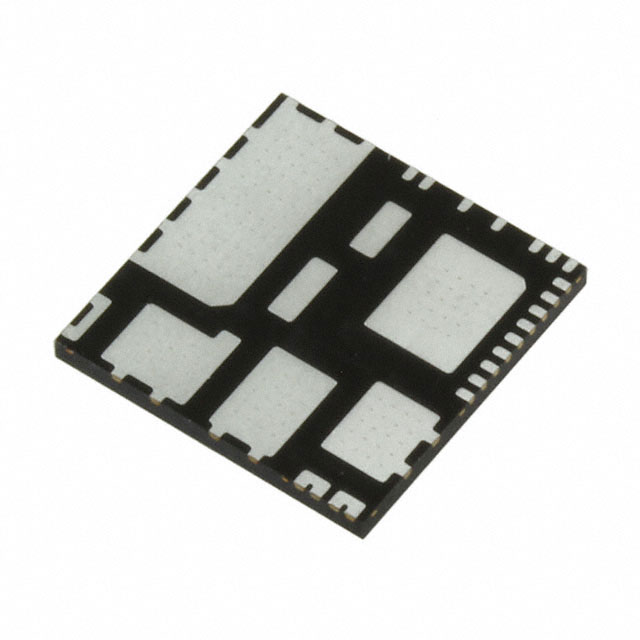

IRSM836-084MATR Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
IRSM836-084MATR
Product Number:
IRSM836-084MATR
MFR Standard Lead Time:
27 Weeks
Package/Case:
36-PowerVQFN
Detailed Description:
IC HALF BRIDGE DRIVER 7A 36QFN
Datasheet:
Descnt:
Half Bridge (3) Driver AC Motors UMOS 36-PQFN (12x12)
In Stock
3500
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
µIPM™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Half Bridge (3)
Applications
AC Motors
Interface
Logic
Load Type
Inductive
Technology
UMOS
Rds On (Typ)
310mOhm
Current - Output / Channel
7A
Current - Peak Output
27A
Voltage - Supply
10V ~ 20V
Voltage - Load
200V (Max)
Operating Temperature
-40°C ~ 150°C (TJ)
Grade
-
Qualification
-
Features
Bootstrap Circuit
Fault Protection
UVLO
Mounting Type
Surface Mount
Package / Case
36-PowerVQFN
Supplier Device Package
36-PQFN (12x12)
Base Product Number
IRSM836
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
