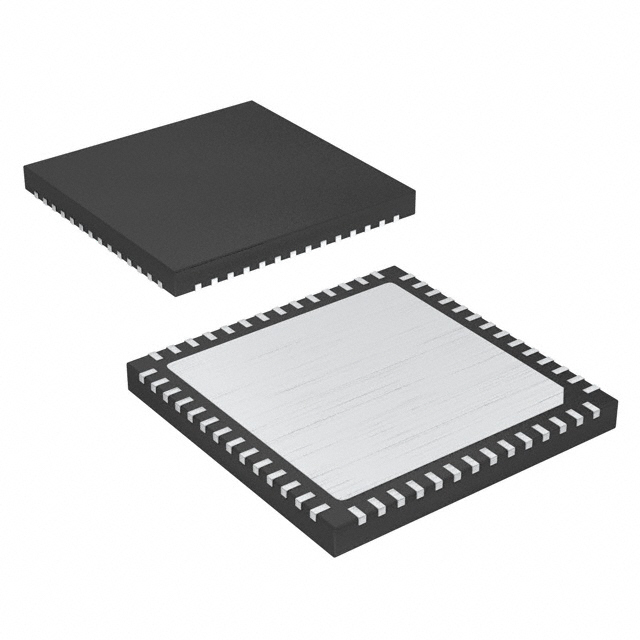

ISL6580CR-T Renesas Electronics Corporation
Favorite
Compare
Manufacturer:
Renesas Electronics Corporation
MFR Product Number:
ISL6580CR-T
Product Number:
ISL6580CR-T
MFR Standard Lead Time:
Package/Case:
56-VFQFN Exposed Pad
Detailed Description:
IC PWR DRIVER N-CHAN 1:1 56QFN
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 25A 56-QFN (8x8)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Renesas Electronics Corporation
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Switch Type
General Purpose
Number of Outputs
12
Ratio - Input:Output
1:1
Output Configuration
High Side or Low Side
Output Type
N-Channel
Interface
I2C
Voltage - Load
12V (Max)
Voltage - Supply (Vcc/Vdd)
3.3V, 5V
Current - Output (Max)
25A
Rds On (Typ)
20mOhm
Input Type
-
Features
-
Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO
Operating Temperature
0°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
56-QFN (8x8)
Package / Case
56-VFQFN Exposed Pad
Base Product Number
ISL6580
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
4,000
-
