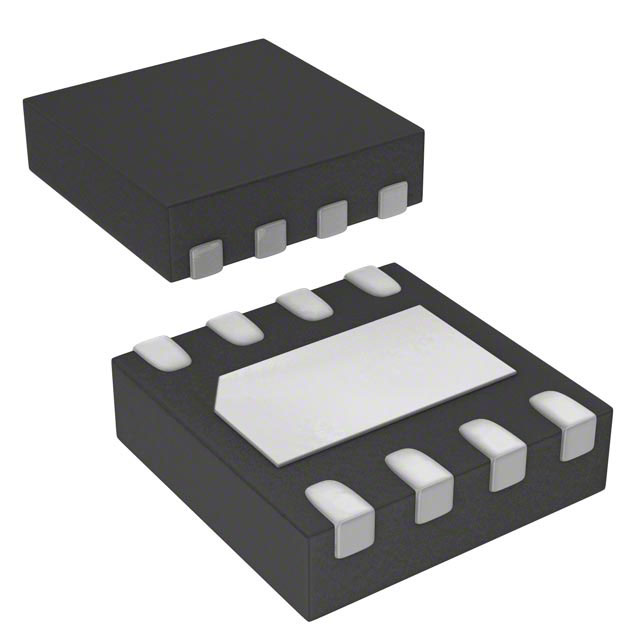

ISL80505IRAJZ Renesas Electronics Corporation
Favorite
Compare
Manufacturer:
Renesas Electronics Corporation
MFR Product Number:
ISL80505IRAJZ
Product Number:
ISL80505IRAJZ
MFR Standard Lead Time:
18 Weeks
Package/Case:
8-VDFN Exposed Pad
Detailed Description:
IC REG LINEAR POS ADJ 500MA 8DFN
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 8-DFN (3x3)
In Stock
3865
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Renesas Electronics Corporation
Series
-
Packaging
Tray
Part Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
6V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
5.5V
Voltage Dropout (Max)
0.09V 500mA
Current - Output
500mA
Current - Quiescent (Iq)
4.6 mA
Current - Supply (Max)
5.7 mA
PSRR
60dB ~ 57dB (120Hz ~ 1kHz)
Control Features
Enable, Soft Start
Protection Features
Over Current, Over Temperature
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
8-VDFN Exposed Pad
Supplier Device Package
8-DFN (3x3)
Base Product Number
ISL80505
Documents & Media
Datasheets
Featured Product
ISL80505/10 High-Performance LDOs
Smart/Intelligent Speaker
Bluetooth® Low Energy (BLE) Sensor Network Solution
PCN Packaging
Label Change-All Devices 01/Dec/2022
Tube-Tray 11-17-22
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
490
-
